SKU:
LNK 43464003
$ 449,89
1-2 weeks delivery time
-
+
The Ultraflex Ulysses 3012 is a powerful 12V hatch lifter with a 300mm stroke, designed for large hatch operations on pleasure boats. It supports up to 650N of load and features electronic stops and a robust aluminium ram arm. The lifter has an IP65 rating for water and dust resistance and operates at 5 mm/sec with no load and 4 mm/sec with a maximum load.
- Description
- Ask a Question
-

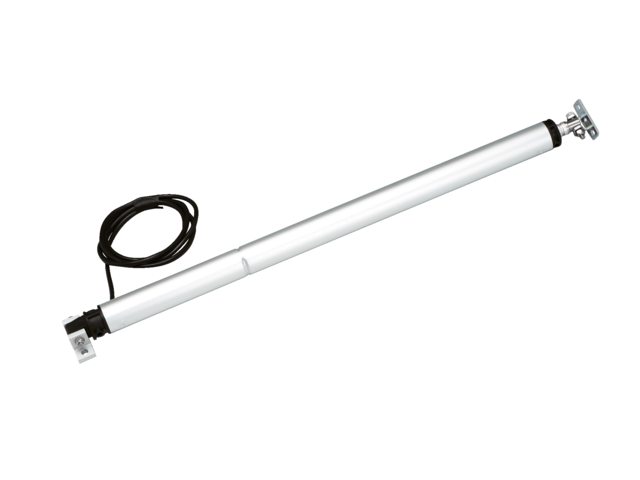

Ultraflex Ulysses 3012 Hatchlifter - Stroke 300 mm (12") - 12V

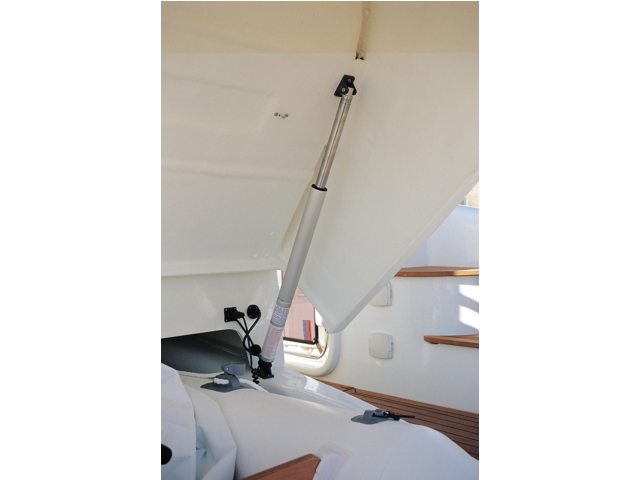

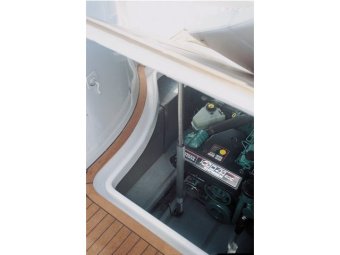

This Ultraflex Ulysses 3012 hatch lifter is engineered for marine use, providing robust operation for opening and closing large and heavy hatches on pleasure boats. With a 300 mm stroke, it allows precise positioning through an electromechanical system for single installation setups.
- Article Number: 43464003
- Manufacturer Number: Ulysses 3012
- Stroke Length: 300 mm
- Fully Closed Length: 635 mm
- Voltage: 12V
- Pull and push capability with max load of 650N (65kg / 144lbs)
- Maximum oscillation range: 180°
- Diameter: 34 mm
- Includes mounting hardware
- Equipped with circuit breaker to prevent accidental overload
- Electronic stop at fully open or closed positions
- Aluminium ram arm construction
- IP65 rated for water and dust resistance
- Speed (12V): 5 mm/sec (no load), 4 mm/sec (max load)
- Current absorption (12V): 2A
- Control box (relay) and switch available separately
-
