The Ultraflex Ulysses 1824 offers the same lifting capabilities as the 1812 but runs on a 24V system. With a 180mm stroke and a maximum load of 650N, it provides reliable hatch operation for boats. It includes a circuit breaker, electronic stops, and an aluminium ram arm, and operates at a speed of 8 mm/sec at no load and 6 mm/sec at full load.
- Description
- Ask a Question
-

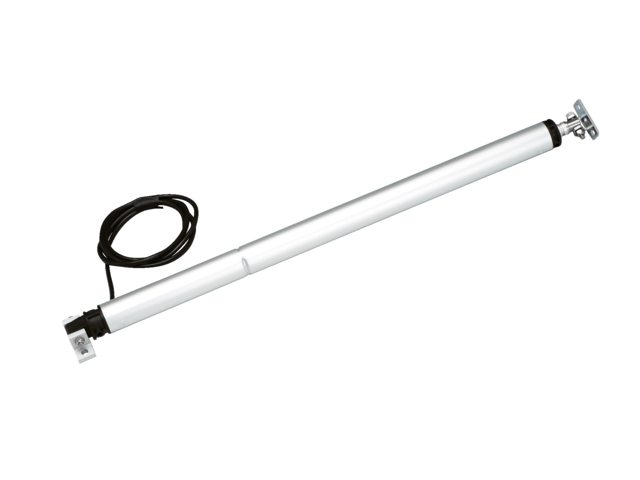

Ultraflex Ulysses 1824 Hatchlifter - Stroke 180 mm (7") - 24V

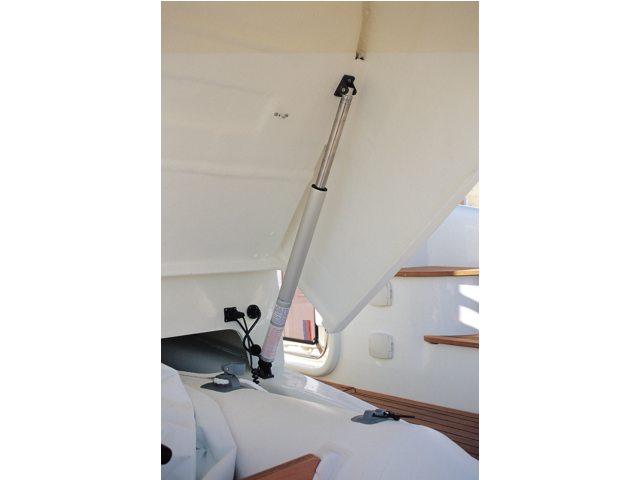

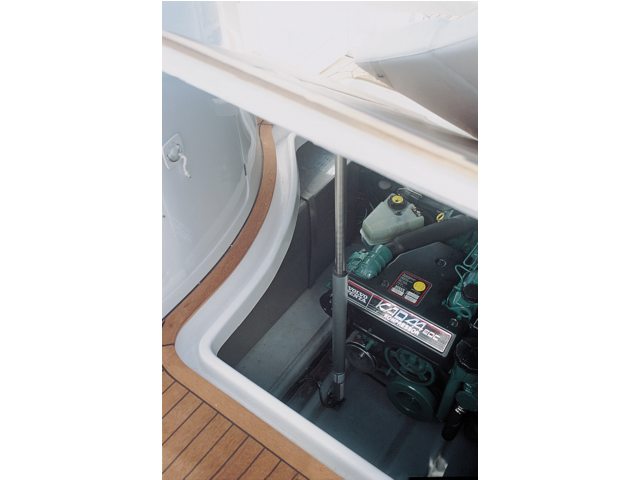

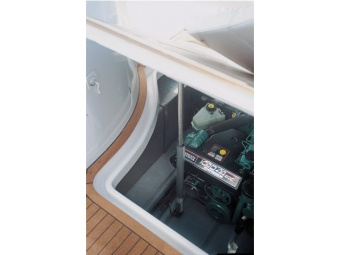

The Ultraflex Ulysses 1824 model offers the same reliable marine-grade hatch lifting with a 24V power supply, ideal for pleasure boats requiring electric hatch operation. The device supports partial or full opening of heavy hatches and is designed for single use installations.
- Article Number: 43464002
- Manufacturer Number: Ulysses 1824
- Stroke Length: 180 mm

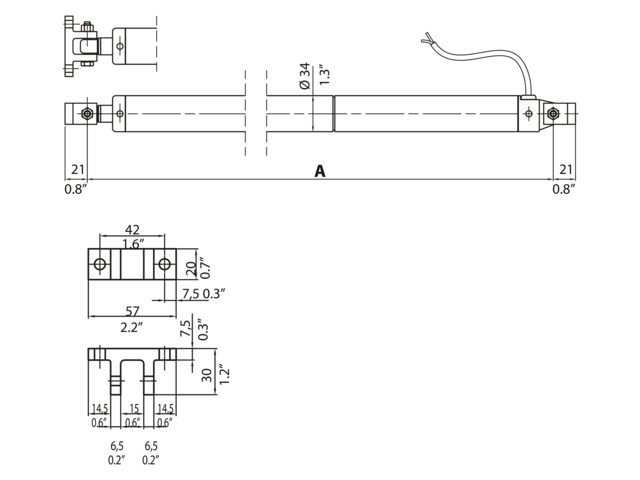

- Fully Closed Length: 515 mm
- Voltage: 24V
- Pull and push capability with max load of 650N (65kg / 144lbs)
- Maximum oscillation range: 180°
- Diameter: 34 mm
- Includes mounting hardware
- Equipped with circuit breaker to prevent accidental overload
- Electronic stop at fully open or closed positions
- Aluminium ram arm construction
- IP65 rated for water and dust resistance
- Speed (24V): 8 mm/sec (no load), 6 mm/sec (max load)
- Current absorption (24V): 1A
- Control box (relay) and switch available separately
-
