SKU:
LNK 43464001
$ 437,78
1-2 weeks delivery time
-
+
The Ultraflex Ulysses 1812 is a marine-grade electromechanical hatch lifter with a 180mm stroke, ideal for controlled lifting and lowering of heavy hatches on pleasure boats. It operates on 12V and supports up to 650N of load with a maximum oscillation range of 180°. It features an aluminium ram arm, IP65 rating for water and dust resistance, and an electronic stop at both fully open and closed positions.
- Description
- Ask a Question
-

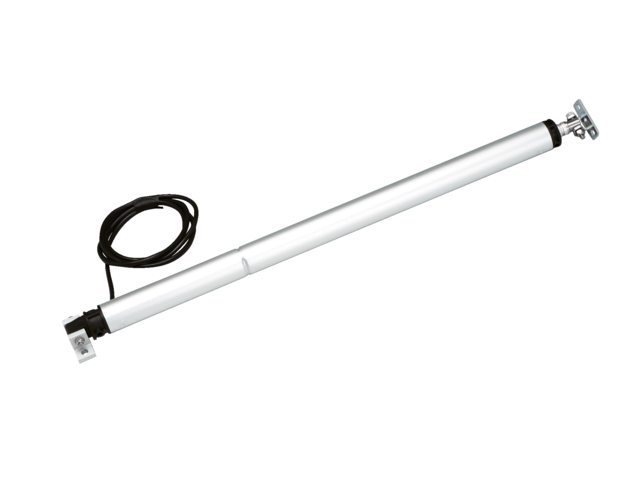

Ultraflex Ulysses 1812 Hatchlifter - Stroke 180 mm (7") - 12V

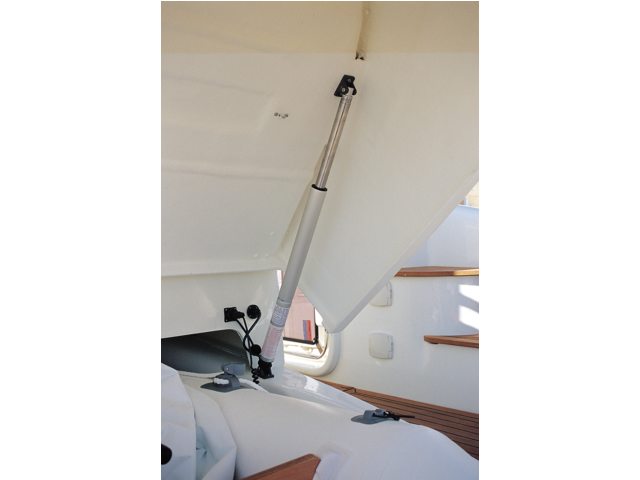

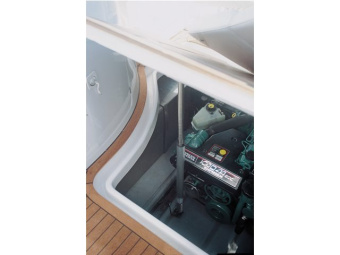

The Ultraflex Ulysses 1812 is a powerful electromechanical hatch lifter designed for marine applications on pleasure boats. It enables controlled lifting and lowering of heavy engine hatches, peak tanks, and hatch beams with precise positioning via a switch. Suitable for single installations only.
- Article Number: 43464001
- Manufacturer Number: Ulysses 1812
- Stroke Length: 180 mm

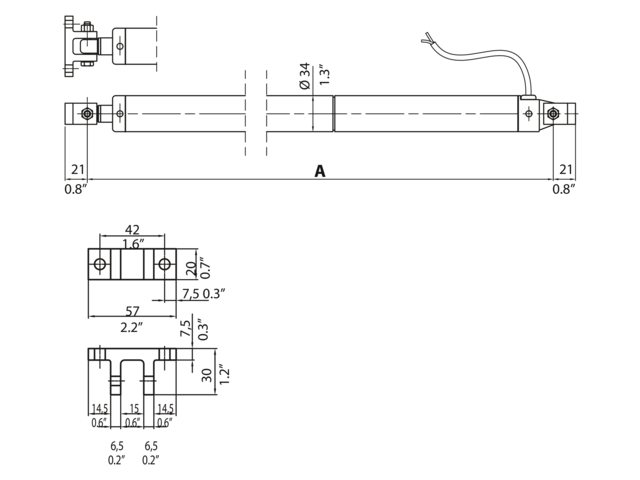

- Fully Closed Length: 515 mm
- Voltage: 12V
- Pull and push capability with max load of 650N (65kg / 144lbs)
- Maximum oscillation range: 180°
- Diameter: 34 mm
- Includes mounting hardware
- Equipped with circuit breaker to prevent accidental overload
- Electronic stop at fully open or closed positions
- Aluminium ram arm construction
- IP65 rated for water and dust resistance
- Speed (12V): 5 mm/sec (no load), 4 mm/sec (max load)
- Current absorption (12V): 2A
- Control box (relay) and switch available separately
-
