SKU:
LNK 75239001
$ 205,50
1-2 weeks delivery time
-
+
The Ultraflex T91 Helm Assembly is a high-performance mechanical steering system suitable for boats that need minimal recoil and maximum efficiency. It includes the T91 steering helm, optional mounting bezel, M90 steering cable, optional steering wheel, and optional engine connection kits, providing smooth, reliable control.
- Description
- Ask a Question
-
Ultraflex T91 Helm Assembly
- Article Number: 75239001

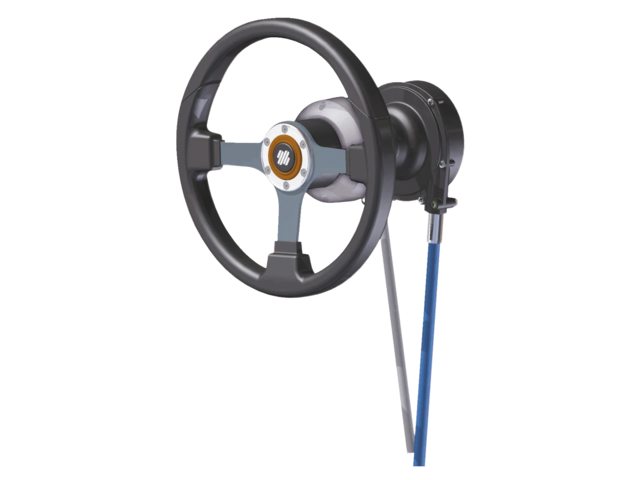

- The Ultraflex T91 Helm Assembly is a complete and high-performance steering system ideal for boats that require minimal steering recoil and high efficiency. This mechanical steering system is engineered for quick, easy installation and provides reliable performance even in tight spaces.
- Complete steering system includes:

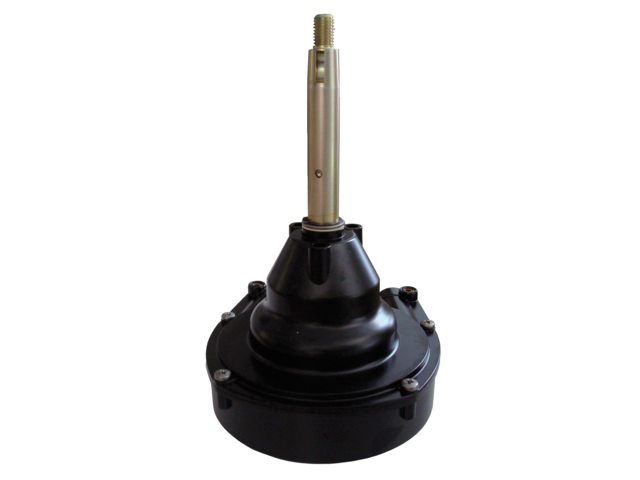

- Steering helm T91
- Mounting bezel (optional order)
- Steering cable M90
- Optional steering wheel (optional order)
- Engine connection kits (depending on motor type, optional separate order)
- Technical specifications:
- The T91 steering system combined with the M90 cable offers a mechanical solution with minimal steering recoil, matching the performance of a hydraulic system.
- Specially designed for high-performance use.
- Fast and simple connection with patented fittings.
- Made from corrosion-resistant materials for durability.
- Ideal for tight spaces, with recessed angles of up to 90 degrees or 20-degree options.
- Approximately 4.2 rotations from port to starboard.
- Stroke: 228mm.
- Maximum diameter of the steering wheel: Ø 406mm.
- Minimum bending radius of the steering cable: 150mm.
- Minimal recoil for smooth steering experience.

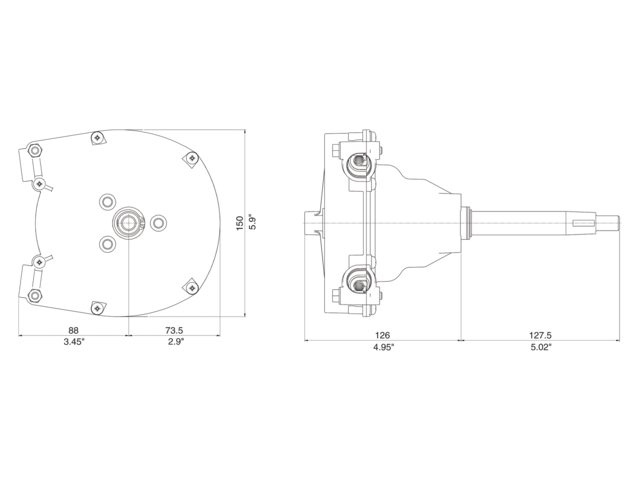

- Compact built-in sizes for easy integration into various boat types.
- Compliant with ABYC P17 and EN28848 safety requirements.
- Available as part of the Fourtech kit.
- For boats traveling faster than 50 mph, a hydraulic steering system is recommended for better performance.
-
