The Ultraflex T85W Rotary Drive Steering System with White Bezel is similar to the T85 system but features a white bezel. It is a complete kit designed for optimal performance, durability, and ease of installation, ideal for use in boats with a variety of engine types.
- Description
- Ask a Question
-
Ultraflex T85W Rotary Drive Steering System with White Bezel
Article number: 75235813
The Ultraflex T85W Rotary Drive Steering System is a complete steering kit designed for ease of use and high performance. It includes all necessary components for smooth operation and is built to withstand tough marine environments.

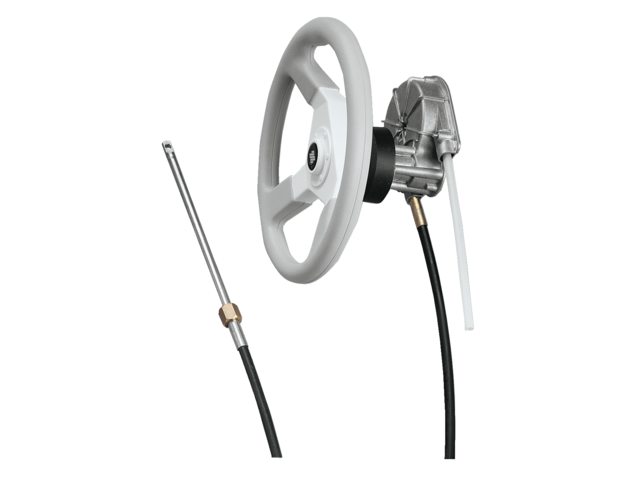

- Complete steering kit includes:

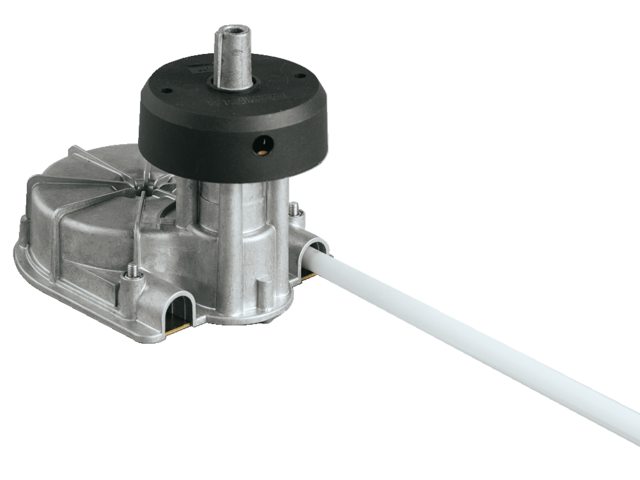

- Steering helm T85
- Steering cable M66 - available in lengths in full feet (30.5 cm), optional separate order for desired length
- Steering wheel (optional order)
- Hardware adapters for motor (depending on motor type, optional separate order)

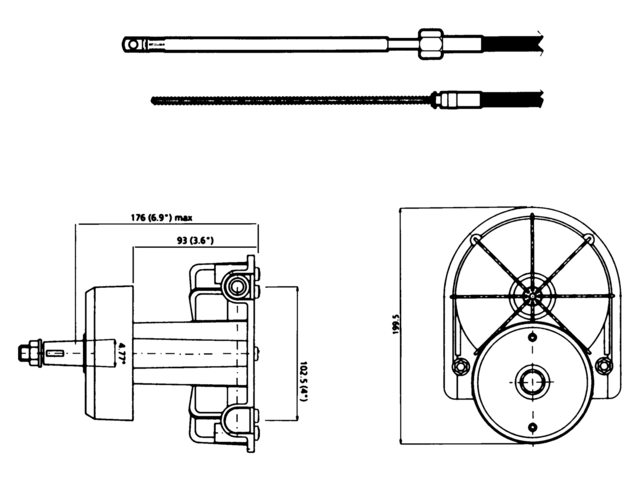

- Technical specifications:
- SS cable ends of stainless steel following ABYC safety requirements
- Corrosion-resistant materials
- Can be mounted even where space is limited
- Lock to lock steering wheel turns approximately 3
- Stroke: 228mm
- Maximum diameter of the steering wheel: Ø 406mm
- Minimum bend radius of the steering cables: 200mm
- Minimum feedback
- Compact for mounting
- Meets safety requirements of ABYC and norm 94/25 CE/EN 28848
- Note: T85 steering system may not be applied on boats with engines exceeding the maximum number of kW/HP prescribed for that type of boat.
- Complete steering kit includes:
-
