SKU:
LNK 75235812
$ 164,90
1-2 weeks delivery time
-
+
The Ultraflex T85 Rotary Drive Steering System with Black Bezel is a high-performance steering kit designed for compact spaces and ease of use. It includes the T85 helm, M66 steering cable, and optional steering wheel, all built with corrosion-resistant materials and meeting ABYC safety standards.
- Description
- Ask a Question
-

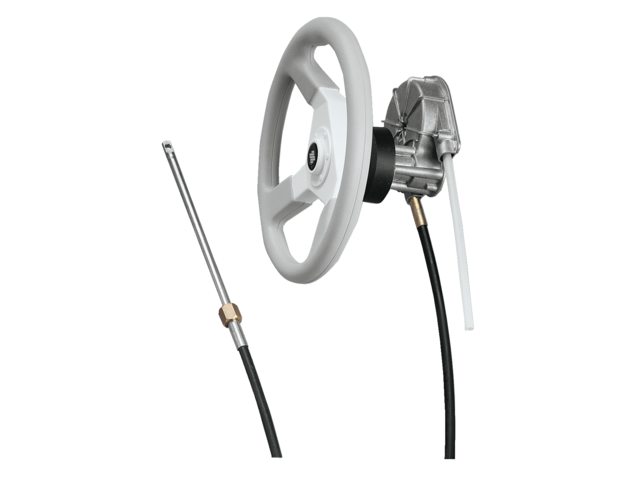

Ultraflex T85 Rotary Drive Steering System with Black Bezel
- Article number: 75235812
- Complete steering kit includes:

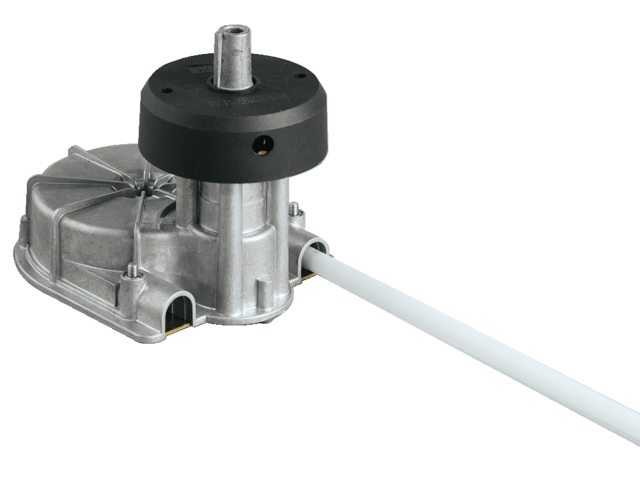

- Steering helm T85
- Steering cable M66 (available in lengths in full feet (30.5 cm), optional separate order based on length)
- Steering wheel (optional order)
- Hardware adapters for motor (depending on motor type, optional separate order)

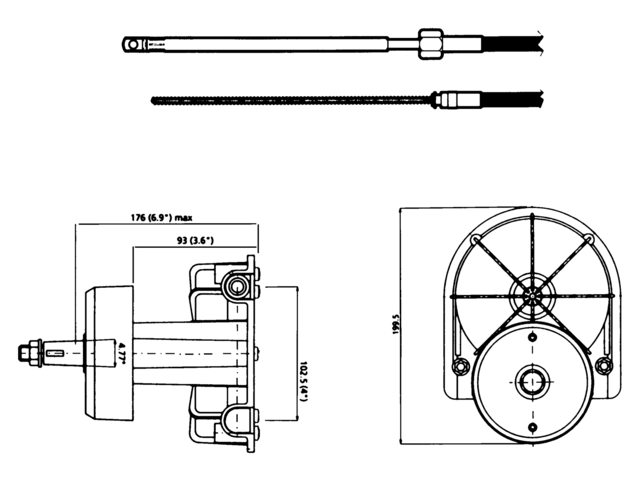

- Technical specifications:
- SS cable ends made of stainless steel following ABYC safety requirements
- Corrosion-resistant materials
- Can be mounted even where space is limited
- Lock to lock steering wheel turns approximately 3
- Stroke 228mm
- Maximum diameter of the steering wheel Ø 406mm
- Minimum bend radius of the steering cables 200mm
- Minimum feedback
- Compact for mounting
- Meets safety requirements of ABYC and norm 94/25 CE/EN 28848
- Application: T85 steering system may not be applied on boats with engines exceeding the maximum number of kW/HP prescribed for that type of boat. See application chart chapter "Selection table steering systems".
-
