The Ultraflex T74NRFC is an anti-feedback steering system with two cables, designed for large outboard motors and big propeller surfaces. It features a non-reversible system to reduce load on the operator and has a compact design for limited mounting spaces. The system meets ABYC safety standards and CE/EN 28848 norm 94/25, offering smooth and reliable performance.
- Description
- Ask a Question
-

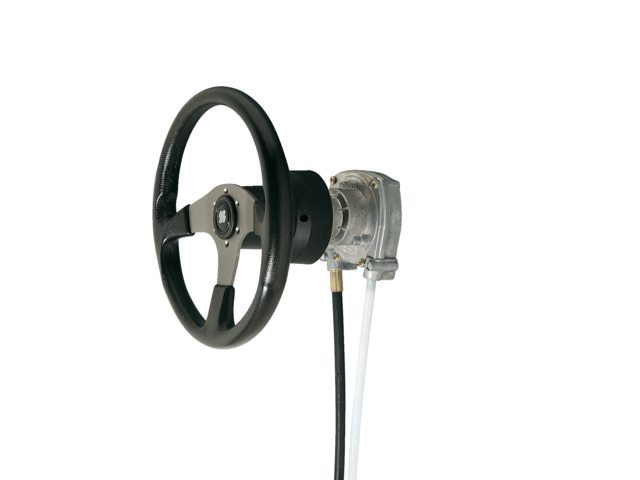

Ultraflex T74NRFC Anti-Feedback Steering System with Two Cables
- Article Number: 75236918
- Complete Steering Kit Includes:

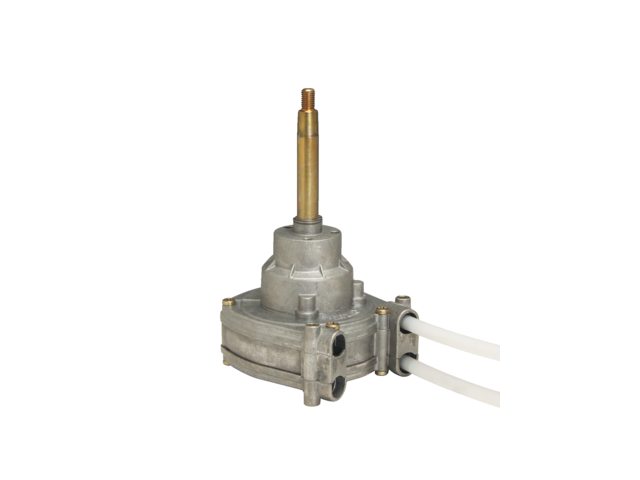

- Steering helm T73NRFC or T74NRFC
- Mounting plate (optional order)

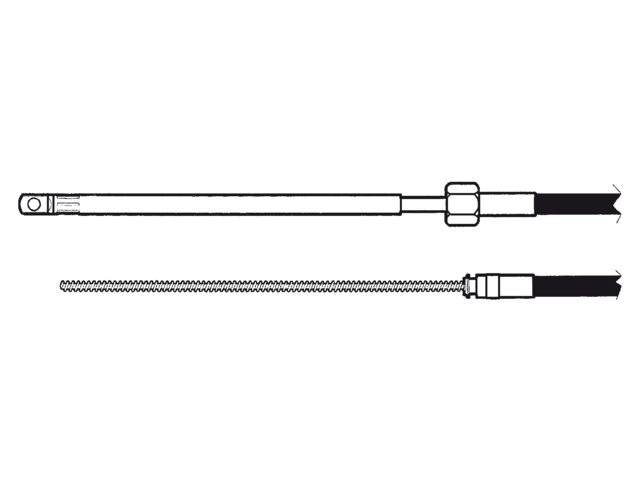

- Steering cable M66 – available in full foot lengths (30.5cm), system T74NRFC requires two cables (optional separate order depending on required length)
- Steering wheel (optional order)
- Hardware adapters for motor (optional order)
- Technical Specifications:
- Patented anti-feedback mechanism for smooth operation.
- Non-reversible system eliminates continuous load on operator caused by propeller torque.
- Ideal for large outboard motors and big propeller surfaces.

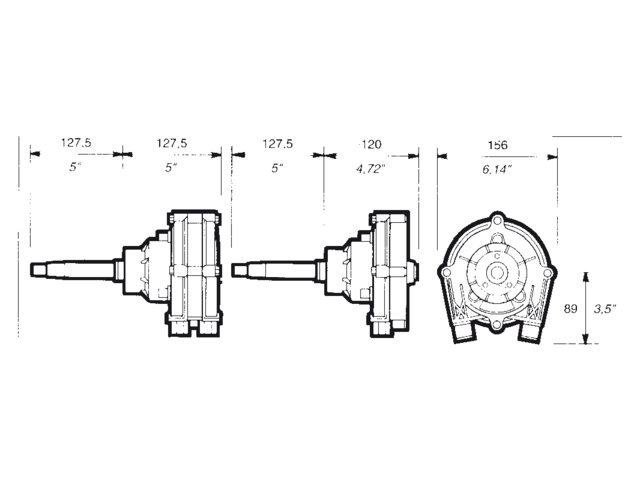

- Compact design, the most compact in its class due to the central position of the axle through the steering wheel.
- Perfect for areas with limited mounting clearance.
- Standard 3/4" conical shaft.
- All cable ends are stainless steel, meeting ABYC safety standards.
- Constructed from corrosion-resistant materials.
- Can be installed at 90° or 20° mounting angles.
- Steering system requires approximately 3.8 turns of the steering wheel from port to starboard.
- Stroke length: 228mm.
- Maximum steering wheel diameter: Ø 406mm.
- Minimum bend radius of steering cables: 200mm.
- Meets ABYC safety standards and CE/EN 28848 norm 94/25.
- Additional Notes: For boats exceeding 50 mph, a hydraulic steering system is recommended.
-
