SKU:
LNK 75236653
$ 415,66
1-2 weeks delivery time
-
+
Ultraflex T72FC is a dual cable steering kit designed for enhanced control and durability, offering flexibility for installation in tight spaces. It includes the steering helm, optional mounting plate, steering cable M66 (sold separately), steering wheel, and motor hardware adapters. The system features corrosion-resistant materials, stainless steel cable ends, and meets ABYC safety standards. With approximately 3.8 turns lock-to-lock, the T72FC is ideal for boats with speeds over 50 mph, where a hydraulic system is preferred.
- Description
- Ask a Question
-

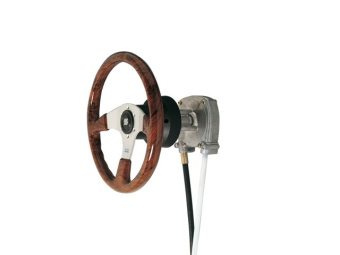

Ultraflex T72FC Steering Gear for 2 Cables
Article number: 75236653
Ultraflex T72FC is a complete dual cable steering kit designed for enhanced control and durability. This system offers the flexibility to mount under limited space conditions, ensuring that it can fit into various boat configurations.
- Includes:

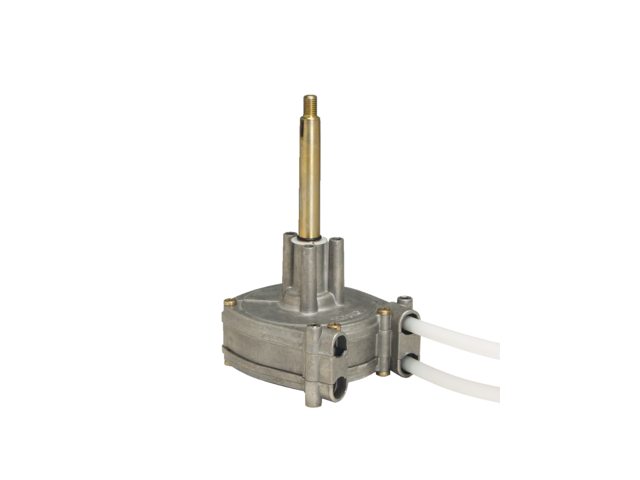

- Steering helm T71FC or T72FC
- Mounting plate (optional order)
- Steering cable M66 - available in full feet (30.5cm) increments (optional separate order for length)
- Steering wheel (optional order)
- Hardware adapters for motor (depending on motor type, optional separate order)
- Technical specifications:
- All cable ends made of stainless steel, complying with ABYC safety requirements
- Corrosion-resistant materials
- Can be mounted even where space is limited
- Can be installed under 90° or 20° mounting angles
- Lock-to-lock steering wheel turns: approximately 3.8
- Stroke: 228mm
- Maximum diameter of steering wheel: Ø 406mm
- Minimum bend radius of the steering cables: 200mm
- Low feedback for ease of operation
- Compact and easy to mount
- Meets ABYC and norm 94/25 CE/EN 28848 safety standards
- Available as part of the Rotech I starter kit
- Application:
- Recommended for boats with speeds greater than 50 mph, where a hydraulic system is preferred.
- Includes:
-
