The Ultraflex T71FC Single Cable Steering is a complete kit designed for high performance and compact installation. It meets ABYC safety standards and features low feedback, corrosion-resistant materials, and the ability to be mounted at various angles, making it suitable for boats with speeds over 50 mph.
- Description
- Ask a Question
-

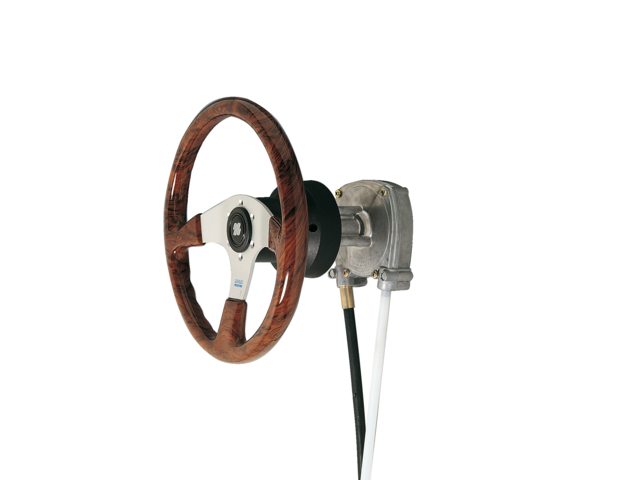

Ultraflex T71FC Single Cable Steering
Article number: 75236651
Ultraflex T71FC is a complete single cable steering kit designed for high performance and durability. It’s ideal for applications where space is limited, with a compact design that meets all ABYC safety standards.
- Includes:

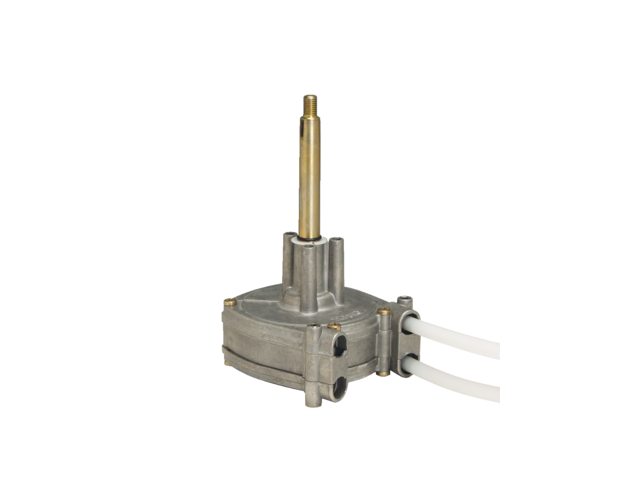

- Steering helm T71FC or T72FC
- Mounting plate (optional order)
- Steering cable M66 - available in full feet (30.5cm) increments (optional separate order for length)
- Steering wheel (optional order)
- Hardware adapters for motor (depending on motor type, optional separate order)
- Technical specifications:
- All cable ends made of stainless steel, complying with ABYC safety requirements
- Corrosion-resistant materials
- Can be mounted even where space is limited
- Can be installed under 90° or 20° mounting angles
- Lock-to-lock steering wheel turns: approximately 3.8
- Stroke: 228mm
- Maximum diameter of steering wheel: Ø 406mm
- Minimum bend radius of the steering cables: 200mm
- Low feedback for ease of use
- Compact and easy to mount
- Meets ABYC and norm 94/25 CE/EN 28848 safety standards
- Available as part of the Rotech I starter kit
- Application:
- Recommended for boats with speeds greater than 50 mph, for which a hydraulic system is preferred.
- Includes:
-
