The Ultraflex T67 Steering System with Black Bezel is a complete steering kit for outboard motors up to 40kW (55HP). It includes a T67 helm, M58 steering cable, optional steering wheel, and motor adapters. It meets ABYC safety standards and is corrosion-resistant, providing durability in marine environments.
- Description
- Ask a Question
-

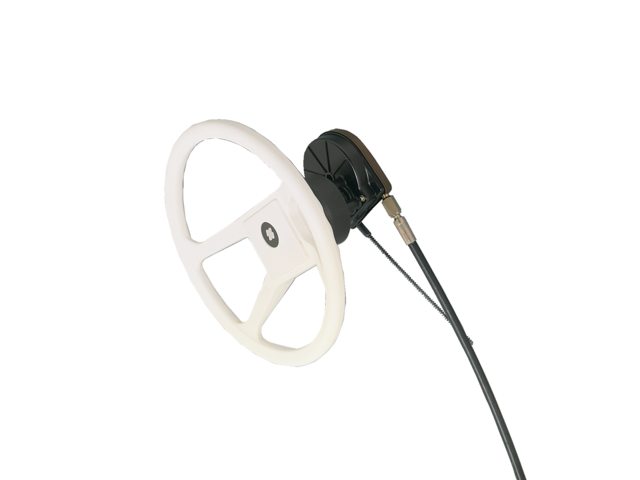

Ultraflex T67 Steering System with Black Bezel
- Article number: 75235809
- Complete steering kit includes:

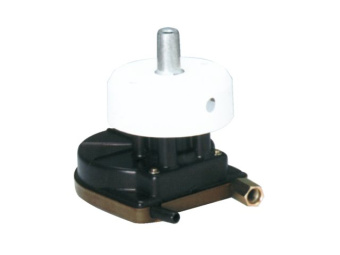

- Steering helm T67
- M58 steering cable (available in 1 foot (30.5 cm) increments, optional separate order based on length)
- Steering wheel (optional order)
- Hardware adapters for motor (depending on motor type, optional separate order)
- Technical specifications:
- All cable ends made of stainless steel following ABYC safety requirements
- Corrosion-resistant materials
- Steering hub 90° in black housing
- Four alternative mounting options for optimal cable lead-through
- Approximately 2.5 steering wheel turns from Port to Starboard
- Stroke 230mm
- Maximum diameter of the steering wheel 380mm
- Minimum bend radius of the steering cables 200mm
- Maximum force applying on helm 1200N (120kg)
- Approved by Norske Veritas
- Meets norm 94/25 EEC/EN 28848
- Available in starter kit Rotech IV
- Application: For outboard motors up to 40kW (55HP)
-
