SKU:
LNK 75244008
$ 2.473,78
1-2 weeks delivery time
-
+
The Ultraflex Nautech Hydraulics Outboard Set up to 300HP (UC128-OBF/2) provides an ideal solution for powerful outboard engines. This set includes the same components as the UC128-OBF/1 set, but with the UC128-OBF/2 steering cylinder for enhanced compatibility. The system features the UP28 intermediate mount helm pump, offering smooth and reliable steering with built-in safety valves. The UC128-OBF/2 cylinder offers a volume of 128cc and 450kg output force, delivering precision and durability for high-performance vessels.
- Description
- Ask a Question
-
Ultraflex Nautech Hydraulics Outboard Set up to 300HP (UC128-OBF/2)
- Article number: 75244008
- This set is also suitable for most outboard engines up to 300HP. It includes the same components as the UC128-OBF/1 set but comes with the UC128-OBF/2 steering cylinder, providing compatibility with additional outboard motors.

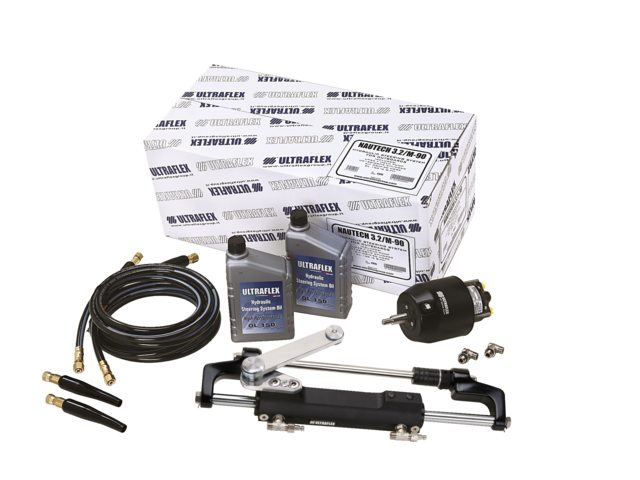

- Nautech™ Outboard hydraulic steering system up to 300 HP includes:
- UP28 intermediate mount helm pump
- UC128-OBF/2 (75244008) or UC128-OBF/1 (75244005) steering cylinder (refer to the cylinder selection table for compatibility)
- OL150 2-litre hydraulic oil
- KIT OB/M-90 (2 x 9-meter hoses)
- Number of wheel turns: 4.3
- The UP28F steering pump features the same shut-off valve to prevent feedback from the engine and a built-in bypass valve to prevent overpressure damage.
- Technical Information UP28F:
- Capacity per stroke: 28cc
- Plungers: 5
- Maximum steering wheel diameter: Ø 710mm
- Technical Information UC128-OBF1/2/3:
- Volume: 128cc
- Output force: 450kg
- Inner diameter: Ø 35mm
- Stroke: 185mm
- Hose connection: 3/8"
- Note: The UC128-OBF cylinder is available in three versions: UC128-OBF/1, UC128-OBF/2, and UC128-OBF/3. Please refer to the cylinder selection table for compatibility.
-
