The Ultraflex Hyco Hydraulic Inboard Set up to 150HP is a complete system designed for inboard engines up to 150HP. This set includes a 6-meter hose, a UP20F intermediate mount helm pump, and an UC69-I cylinder. With 3.5 wheel turns, it provides easy replacement for existing steering systems. The UP20F helm pump has a capacity of 20cc per stroke and a built-in bypass valve for overpressure protection.
- Description
- Ask a Question
-
Ultraflex Hyco Hydraulic Inboard Set up to 150HP - Article Number: 75244019
This complete hydraulic steering set is ideal for inboard engines up to 150 HP. It provides everything needed to replace or build upon an existing hydraulic or mechanical steering system, including a 6-meter custom-made hose with fittings.

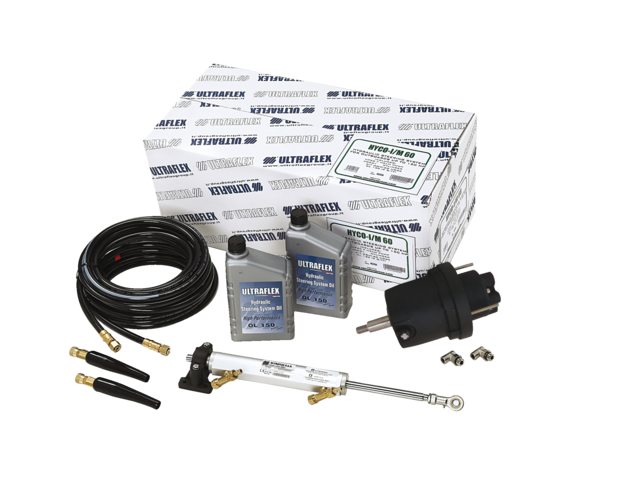

- Hyco™ Inboard Hydraulic Steering System Includes:
- UP20F Intermediate mount helm pump
- UC69-I
- OL150 2l hydraulic oil
- KIT OB/M-60 (6-meter hose)
- Number of wheel turns: 3.5
- Technical Information for UP20F Helm Pump:
- Capacity per stroke: 20cc
- 5 Plumper
- Maximum wheel diameter: Ø 508mm
- Maximum wheel diameter with X52: Ø 406mm
- Shut-off valve to prevent motor setbacks to the steering wheel
- Built-in bypass valve to protect against overpressure
- Technical Information for UC69-I:
- Balanced strokes from middle to starboard and port
- Volume: 69cc
- Output force: 168kg
- Inner diameter: Ø 25mm
- Stroke: 150mm
- Hose connection: 3/8"
-
