SKU:
LNK 75243999
$ 1.399,80
1-2 weeks delivery time
-
+

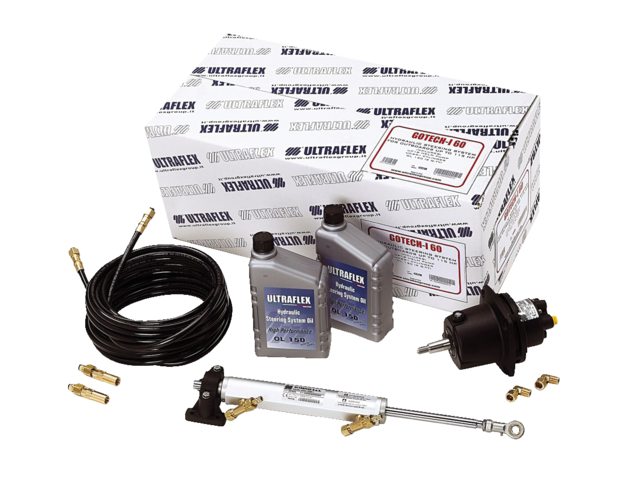

The Ultraflex Gotech Hydraulic Inboard Set, designed for inboard setups up to 115HP, provides a reliable solution for smooth and responsive steering. It includes the UP18 intermediate mount helm pump, UC69-I inboard cylinder, OL150 2L hydraulic oil, and a hose kit. The set ensures consistent performance with balanced strokes from middle to port and starboard. Technical details include a 18cc per stroke capacity for the helm pump and 69cc volume for the inboard cylinder, ensuring a reliable and precise steering experience.
- Description
- Ask a Question
-
Ultraflex Gotech Hydraulic Inboard Set up to 115HP
Article number: 75243999
The GOTECH™ hydraulic control system designed for inboard setups up to 115 HP offers a highly reliable and efficient solution for steering control. This system includes various components that work together to provide smooth, responsive steering for your vessel.
- UP18 Intermediate mount helm pump: Equipped with a shut-off valve to prevent setbacks from the motor to the steering wheel and a built-in bypass valve for overpressure protection.
- UC69-I Inboard cylinder: Balanced design for equal strokes from middle to starboard and port, ensuring consistent performance.
- OL150 2L hydraulic oil: Essential for smooth operation and lubrication within the system.
- Kit OB-GT / M hose kit: Includes hoses with a diameter of Ø 1/4" and 2 x 6m (19.7') long, providing flexibility for installation.
- Number of wheel turns: 3.8 turns for full rotation, ensuring precise control over steering.

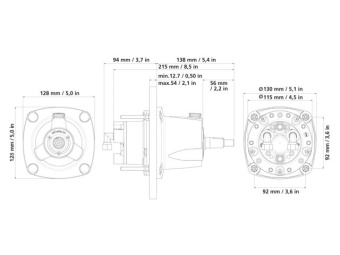

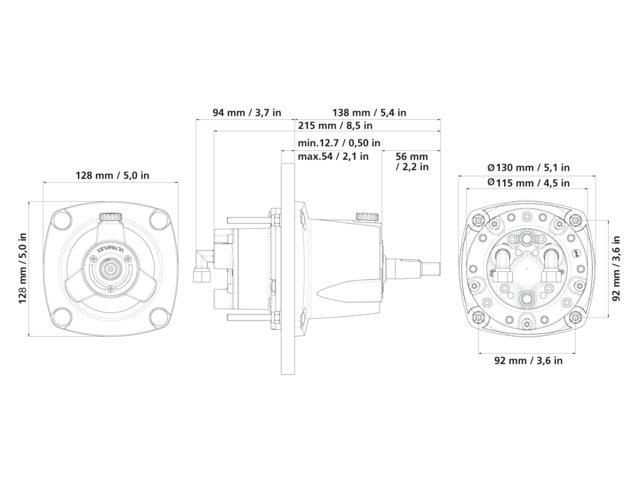

Technical Information for UP18 Helm Pump
- Capacity per stroke: 18cc
- Plumbers: 5
- Maximum wheel diameter: Ø 508mm
- Maximum pressure: 55 bar / 800 PSI
Technical Information for UC69-I Inboard Cylinder
- Volume: 69cc
- Torque: 32 kgm
- Output force: 168 kg
- Inner diameter: Ø 25mm
- Stroke: 150mm
- Hose connection: 3/8"

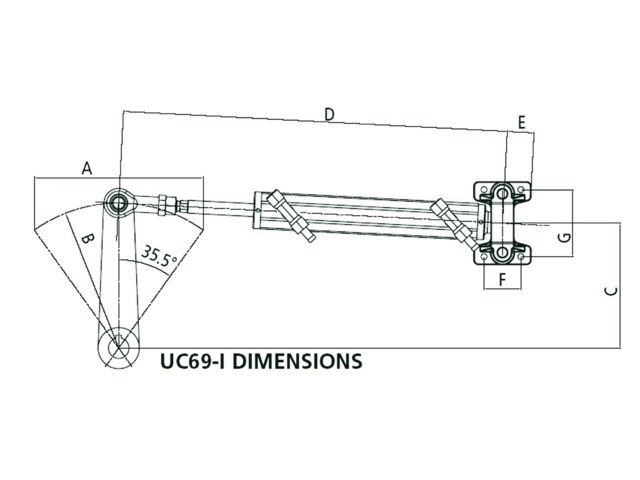

Dimensions for UC69-I Inboard Cylinder
- A: 150mm (5.9")
- B: 129mm (5.11")
- C: 105mm (4.13")
- D: 417mm (16.42")
- E: 31.3mm (1.23")
- F: 40mm (1.57")
- G: 73mm (2.87")
- Rod Ø: 14mm (0.6")
-
