SKU:
LNK 75244000
$ 1.484,85
1-2 weeks delivery time
-
+
The Ultraflex Gotech Hydraulic Control System Outboard Set, designed for outboard motors up to 115HP, offers smooth and responsive steering. It includes the UP18 intermediate mount helm pump, UC81-OBF front mount cylinder, OL150 2L hydraulic oil, and a hose kit. The system features a shut-off valve to prevent motor feedback and a built-in bypass valve for overpressure protection. Technical details for the UP18 pump and UC81-OBF cylinder ensure optimal performance with precise control for vessels.
- Description
- Ask a Question
-

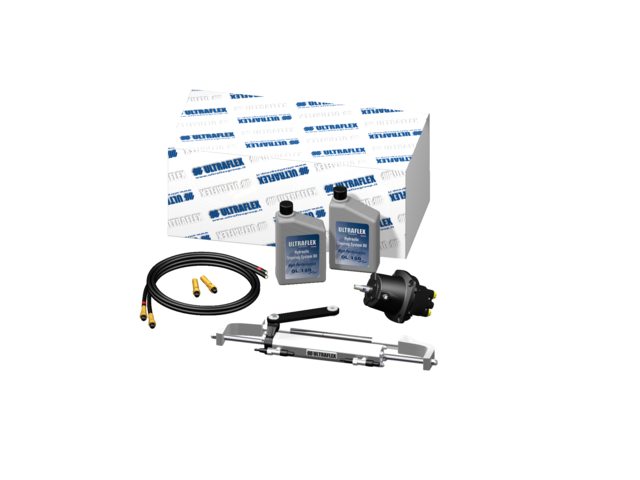

Ultraflex Gotech Hydraulic Control System Outboard Set to 115HP
Designed for optimal performance, the GOTECH™ hydraulic control system for outboard motors up to 115 HP offers smooth, reliable steering. This set includes essential components to ensure precision and durability in marine steering applications.
- Article Number: 75244000
- Components Included:
- UP18 intermediate mount helm pump
- UC81-OBF front mount cylinder
- OL150 2l hydraulic oil
- Kit OB-GT / M hose kit diameter Ø 1/4", 2 x 6m (19.7') long
- Number of wheel turns: 4.5
- Key Features:
- The UP18 steering pump features a shut-off valve, preventing motor setbacks from reaching the steering wheel.
- A built-in bypass valve ensures protection from overpressure damage.
- The UP18 pump is compatible with the UC81-OBF cylinder for reliable performance.

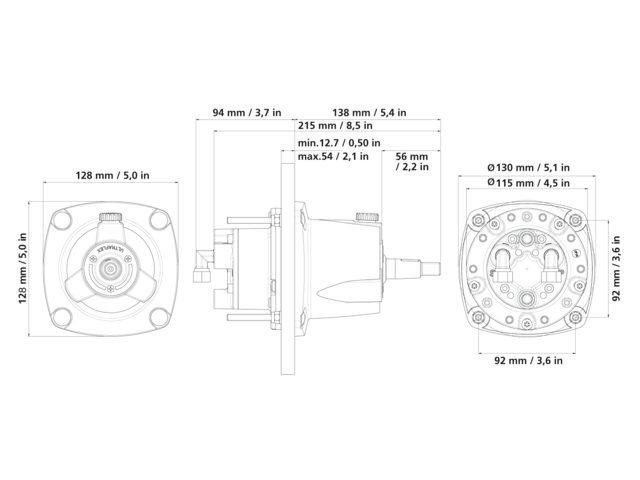

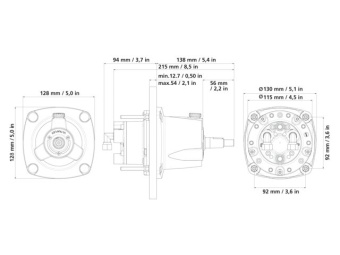

Technical Information - UP18 Helm Pump
- Capacity per Stroke: 18cc
- Number of Plungers: 5
- Maximum Wheel Diameter: Ø 508mm
- Pressure: 55bar / 800 PSI

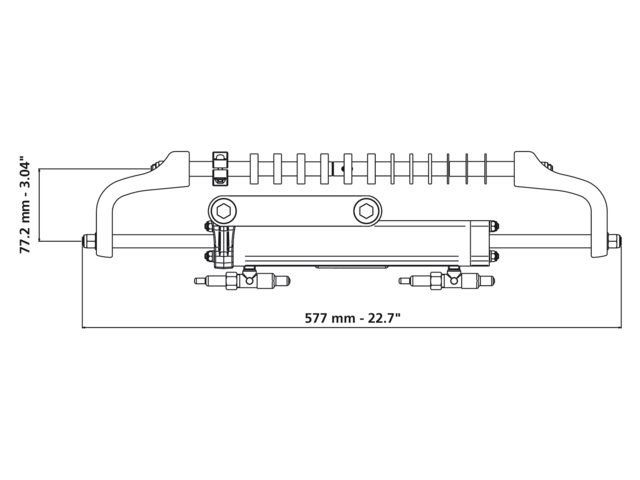

Technical Information - UC81-OBF Front Mount Cylinder
- Balanced Stroke: Equal number of strokes from middle to starboard and port
- Volume: 81cc
- Output Force: 222kg
- Inner Diameter: Ø 27.4mm
- Stroke Length: 186mm
- Hose Connection: 3/8"
-
