The Ultraflex AV 6012 is a 12V electromechanical hatch lifter with a 600mm stroke, ideal for larger and heavier lifting applications on pleasure boats. With a maximum load of 1200N (single) or 2400N (twin), it features a durable stainless steel ram arm, electronic stops, and operates at speeds up to 25 mm/sec, making it suitable for engine hatches and tanks.
- Description
- Ask a Question
-

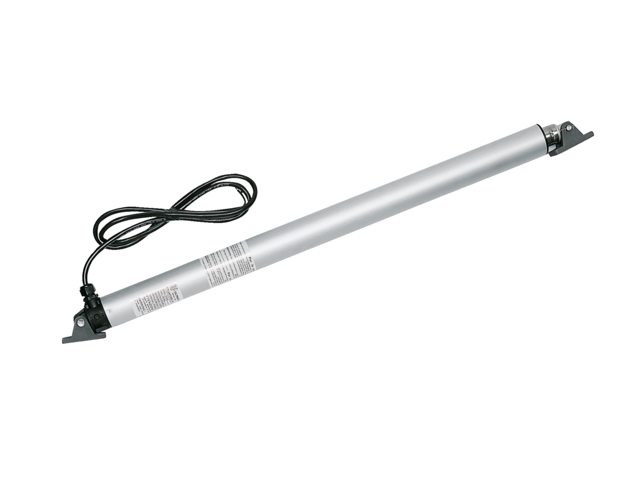

Ultraflex AV 6012 Hatchlifter - Stroke 600 mm (24") - 12V
The Ultraflex AV 6012 is a powerful electromechanical hatch lifter built for both single and twin cylinder setups. It is ideal for lifting engine hatches, peak tanks, and hatch beams on pleasure crafts.
- Article Number: 43464009
- Manufacturer Number: AV 6012
- Stroke: 600 mm (24")
- Length when fully closed: 977 mm
- Voltage: 12V
- Compatible with single or twin installations
- Maximum load:
- Single: 1200N (120 kg / 265 lbs)
- Twin: 2400N (240 kg / 529 lbs)

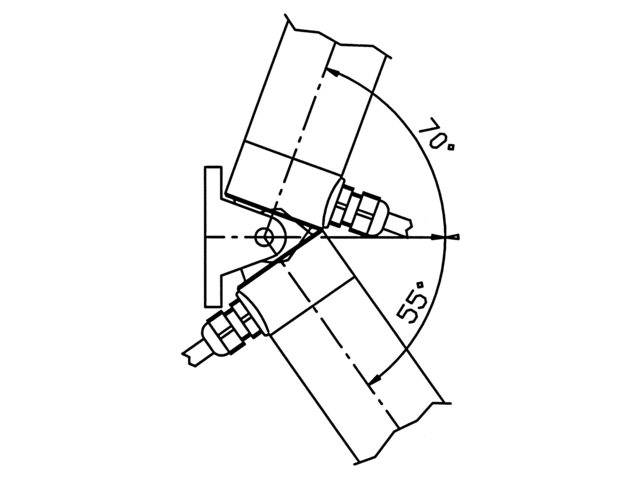

- Maximum oscillation angle: 125°
- Diameter: Ø 48 mm
- Comes with mounting hardware
- Includes circuit breaker to prevent overload damage
- Electronic stops at both fully closed and fully open positions
- Durable stainless steel ram arm
- Speed:
- 25 mm/sec without load
- 17 mm/sec at maximum load
- Current consumption:
- 12V: 10A
- 24V: 5A
- Control box (relay) and switch available separately
- 12V versions are ignition protected to ISO8846 and UL1500 standards
-
