The Ultraflex AV 4524 operates on a 24V system, offering the same robust design as the AV 4512 with a 450mm stroke. It supports loads of up to 1200N (single) or 2400N (twin), includes a stainless steel ram arm, and features an IP65 rating. It operates with speeds of up to 25 mm/sec with no load and provides reliable performance for various boat lifting tasks.
- Description
- Ask a Question
-

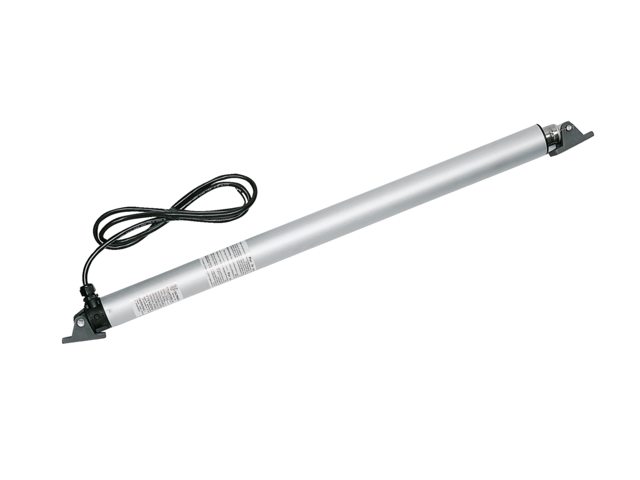

Ultraflex AV 4524 Hatchlifter - Stroke 450 mm (18") - 24V
The Ultraflex AV 4524 hatch lifter is a robust electromechanical device designed for single or twin cylinder installation on pleasure boats. It effectively manages heavy loads such as engine hatches, peak tanks, and hatch beams.
- Article Number: 43464008
- Manufacturer Number: AV 4524
- Stroke: 450 mm (18")
- Length when fully closed: 827 mm
- Voltage: 24V
- Suitable for single or twin installation
- Maximum load capacity:
- Single: 1200N (120 kg / 265 lbs)
- Twin: 2400N (240 kg / 529 lbs)

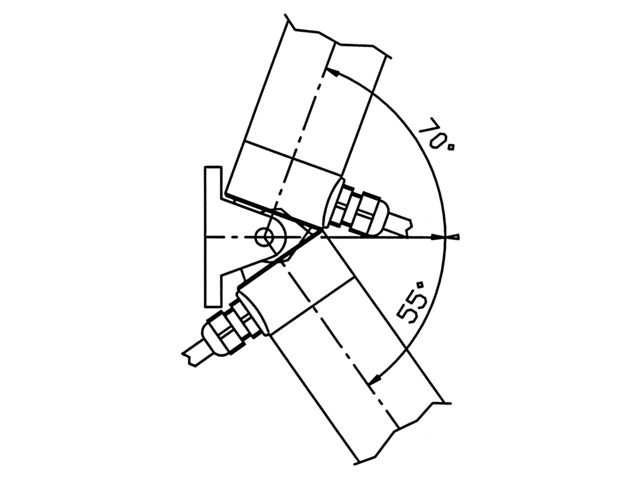

- Maximum oscillation range: 125°
- Diameter: Ø 48 mm
- Includes mounting hardware
- Equipped with circuit breaker to prevent accidental overloading
- Electronic stop at fully closed or fully open positions
- Stainless steel ram arm for durability
- Speed:
- 25 mm/sec with no load
- 17 mm/sec under maximum load
- Current absorption:
- 12V: 10A
- 24V: 5A
- Control box (relay) and switch sold separately
- 12V models are ignition protected according to ISO8846 and UL1500 standards
-
