The Ultraflex AV 3012 is an electromechanical hatch lifter with a 300mm stroke, designed for heavy-duty tasks on boats, with a maximum load capacity of 1200N (single) or 2400N (twin). It offers electronic stops, circuit protection, and operates at speeds up to 25 mm/sec with no load, making it perfect for engine hatches and tank openings.
- Description
- Ask a Question
-

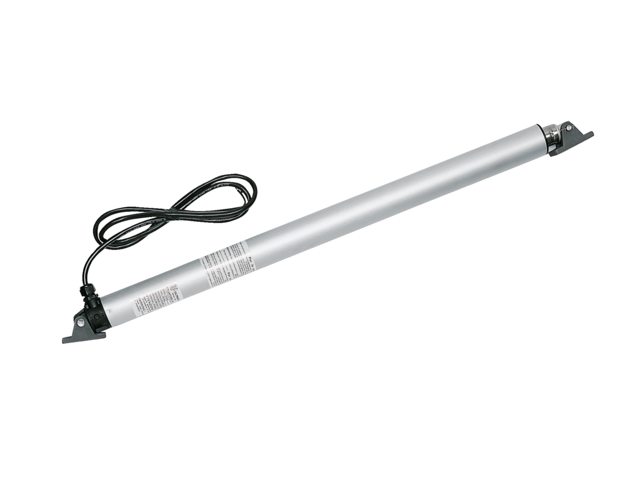

Ultraflex AV 3012 Hatchlifter - Stroke 300 mm (12") - 12V
The Ultraflex AV 3012 is a robust electromechanical hatch lifter designed for single or twin cylinder installation. It is engineered to handle heavy loads on pleasure boats, making it ideal for lifting engine hatches, peak tanks, and hatch beams.
- Article Number: 43464005
- Manufacturer number: AV 3012
- Stroke: 300 mm (12")

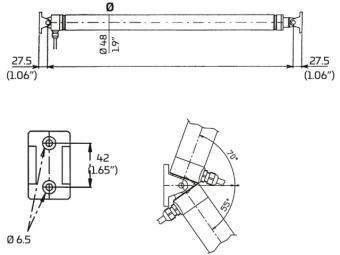

- Fully closed length: 677 mm
- Voltage: 12V
- Installation: Single or twin cylinder
- Maximum load capacity:
- Single: 1200N (120 kg / 265 lbs)
- Twin: 2400N (240 kg / 529 lbs)

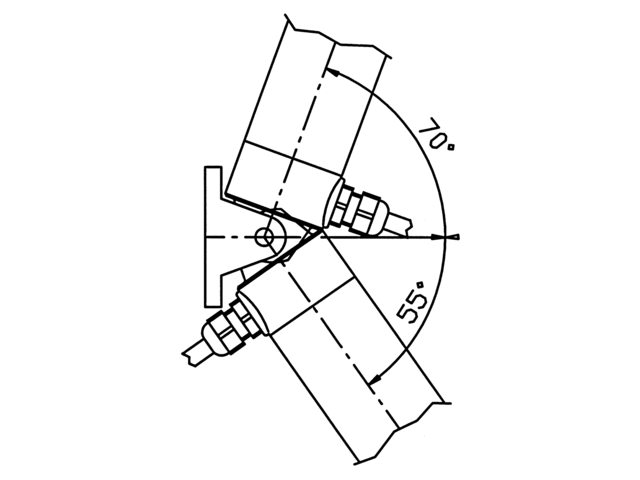

- Maximum oscillation range: 125°
- Diameter: Ø 48 mm

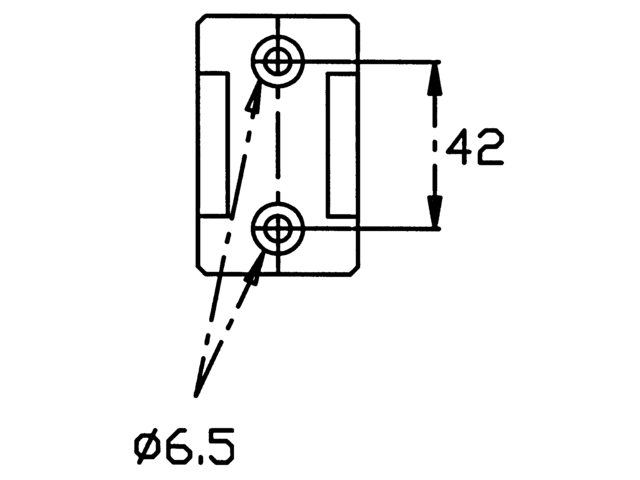

- Includes mounting hardware
- Equipped with circuit breaker to prevent accidental overload
- Electronic stops at fully closed or fully open positions
- Stainless steel ram arm
- Speed:
- 25 mm/sec (no load)
- 17 mm/sec (maximum load)
- Current absorption:
- 12V: 10A
- 24V: 5A
- Control box (relay) and switch available separately
- 12V model is ignition protected according to ISO8846 and UL1500 standards
-
