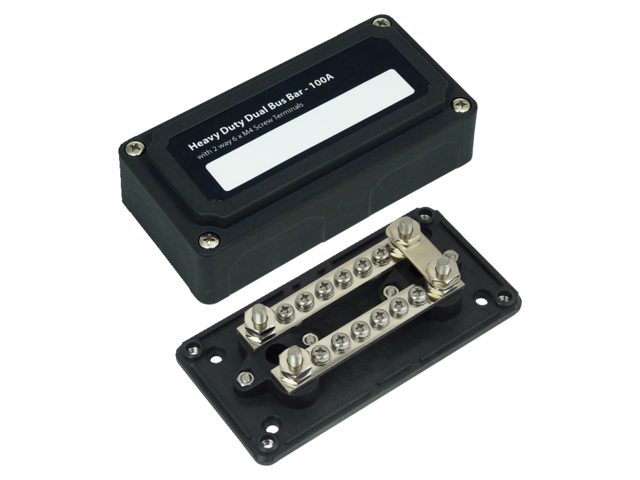

Talamex Heavy Duty Dual Busbar 12xM4 With 4xM6 Stud Max 100A

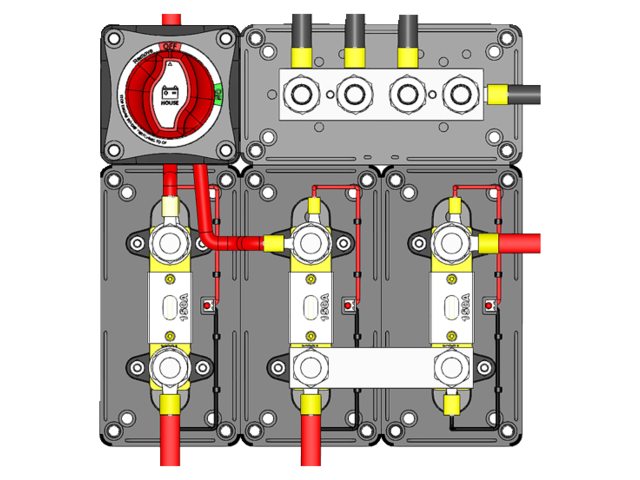

This heavy-duty glass fiber reinforced nylon busbar is equipped with 4 M6 studs and 12 M4 screw terminals. It features six removable windows for unobstructed wiring from different angles. Its specific size allows for easy combination with mini battery switches (article numbers 14.452.145 & 14.452.146), the heavy-duty ANL fuse holder (article number 14.425.946), and the heavy-duty busbar (article number 14.425.947).
- Dimensions (W x L x H): 138mm x 69mm x 44,5mm
- Voltage maximum: 48V DC
- Current maximum: 100V continuous
- Terminal stud size: 4 x M6 (3/8")
- Screw terminal: 12 x M4 (5/32")
- Article Number: 14425948
-
