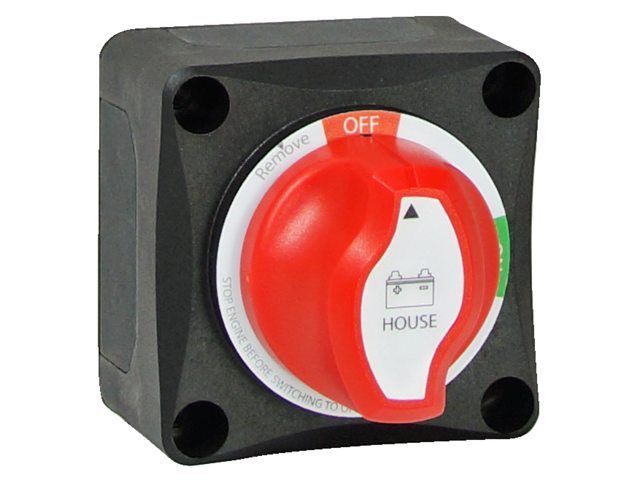

Talamex Battery Switch Mini 300A On-Off
This compact Talamex battery switch is designed for loads up to 48V with a continuous current capacity of 275A. It features high peak and cranking loads, making it reliable for demanding electrical systems. The switch includes M10 terminal studs and a detachable base plate for easy panel mounting, compliant with CE ISO8846 and SAE J1171 ignition protection standards.
- Load max: 48V
- Continuous load max: 275A
- Load peak 'intermittent' (max. 5 min): 455A
- Load 'cranking' (max. 10 sec): 1250A

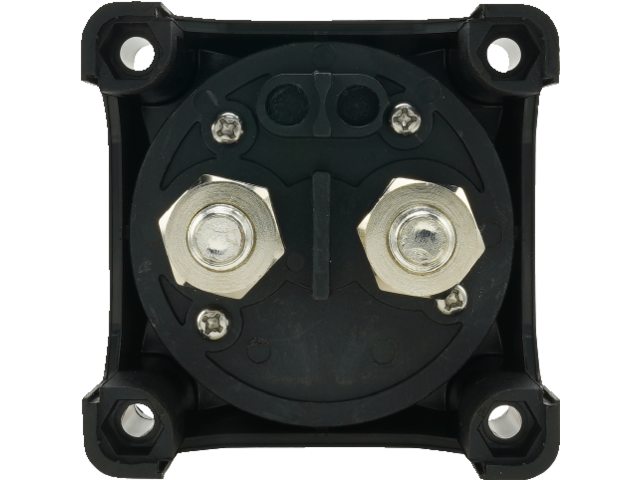

- M10 terminal studs
- Detachable base plate for panel mounting
- Dimensions (L x W x H): 69mm x 69mm x 75mm
- CE ISO8846 / SAE J1171 ignition protected
- Article Number: 14452145
-
