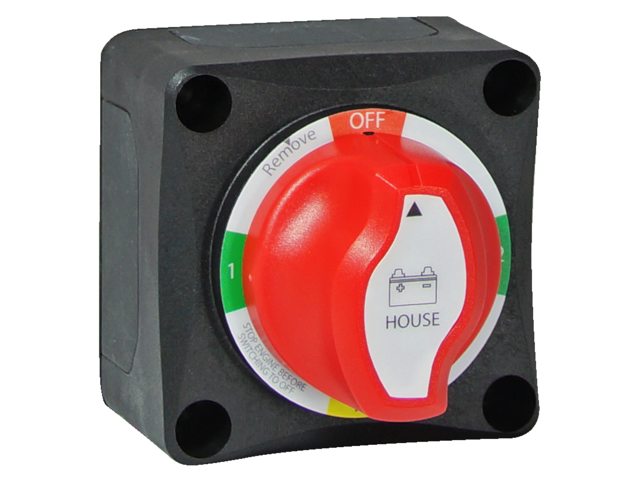

Talamex Battery Switch Mini 300A Off-1-Both-2
This model supports up to 48V with continuous load capacity of 200A. It offers peak intermittent and cranking loads suitable for short bursts of high current. Equipped with M8 terminal studs and a detachable base plate, it is made for panel mounting with certified ignition protection.
- Load max: 48V
- Continuous load max: 200A
- Load peak 'intermittent' (max. 5 min): 300A
- Load 'cranking' (max. 10 sec): 1000A

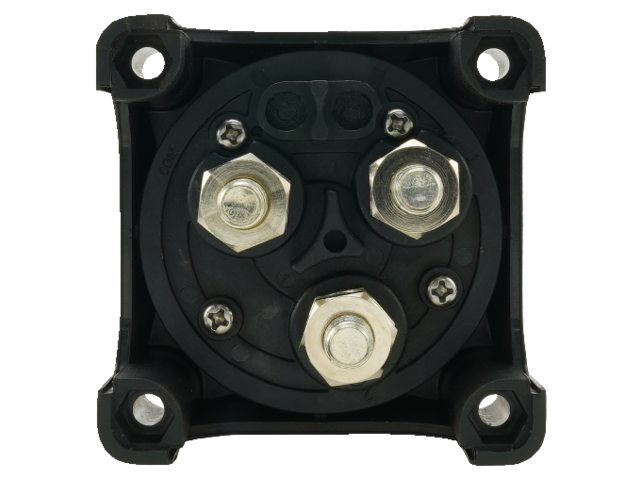

- M8 terminal studs
- Detachable base plate for panel mounting
- Dimensions (L x W x H): 69mm x 69mm x 75mm
- CE ISO8846 / SAE J1171 ignition protected
- Article Number: 14452146
-
