SKU:
LNK 43464007
$ 753,45
1-2 weeks delivery time
-
+
The Ultraflex AV 4512 is a 12V hatch lifter with a 450mm stroke, designed for handling heavy loads on pleasure boats, with a maximum load capacity of 1200N (single) or 2400N (twin). It features a stainless steel ram arm, electronic stops, and operates at speeds up to 25 mm/sec, providing robust performance for larger hatch operations.
- Description
- Ask a Question
-

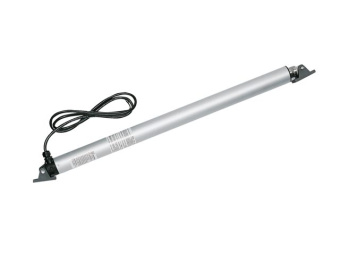

Ultraflex AV 4512 Hatchlifter - Stroke 450 mm (18") - 12V
The Ultraflex AV 4512 is a powerful electromechanical hatch lifter featuring a longer 450 mm (18") stroke. Designed for both single and twin cylinder configurations, it supports heavy-duty lifting tasks on pleasure boats, including engine hatches and peak tanks.
- Article Number: 43464007
- Manufacturer number: AV 4512
- Stroke: 450 mm (18")

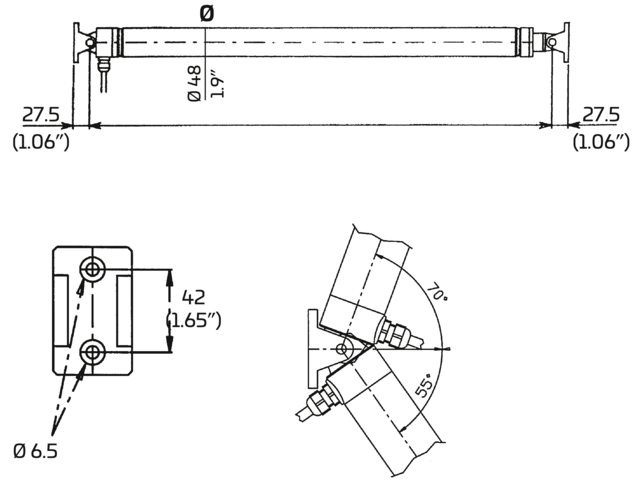

- Fully closed length: 827 mm
- Voltage: 12V
- Installation: Single or twin cylinder
- Maximum load capacity:
- Single: 1200N (120 kg / 265 lbs)
- Twin: 2400N (240 kg / 529 lbs)

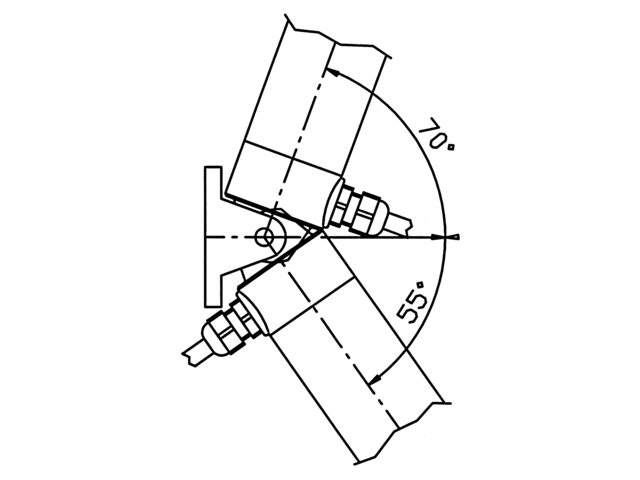

- Maximum oscillation range: 125°
- Diameter: Ø 48 mm

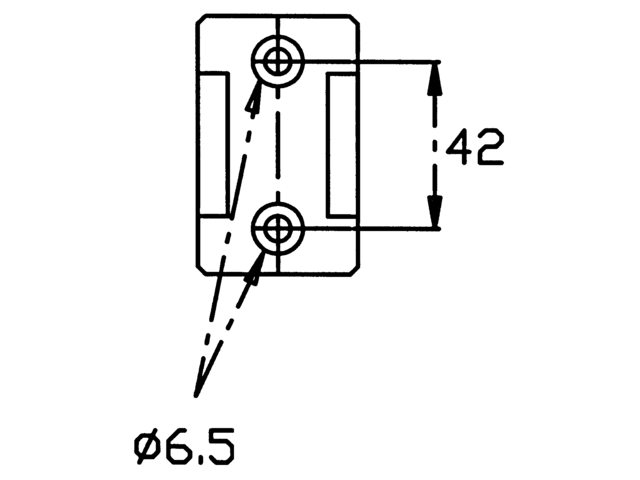

- Includes mounting hardware
- Equipped with circuit breaker to prevent accidental overload
- Electronic stops at fully closed or fully open positions
- Stainless steel ram arm
- Speed:
- 25 mm/sec (no load)
- 17 mm/sec (maximum load)
- Current absorption:
- 12V: 10A
- 24V: 5A
- Control box (relay) and switch available separately
- 12V model is ignition protected in compliance with ISO8846 and UL1500
-
