SKU:
LNK 43464006
$ 729,50
1-2 weeks delivery time
-
+
The Ultraflex AV 3024 is a 24V version of the AV 3012, providing strong performance for heavy-duty hatch lifting tasks. With a 300mm stroke and a maximum load capacity of 1200N (single) or 2400N (twin), it features a stainless steel ram arm, electronic stops, and an IP65 rating, delivering fast operation with speeds up to 25 mm/sec with no load.
- Description
- Ask a Question
-

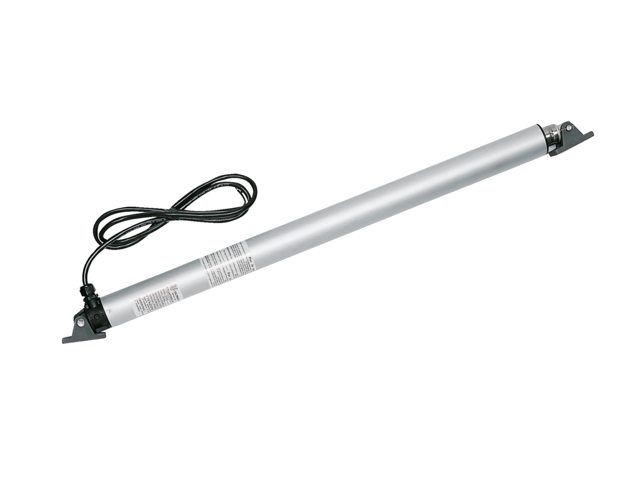

Ultraflex AV 3024 Hatchlifter - Stroke 300 mm (12") - 24V
The Ultraflex AV 3024 offers the same high-strength electromechanical design as the AV 3012 but operates on 24 volts. Suitable for single or twin cylinder setups, it efficiently manages heavy loads on various boat hatches and tanks.
- Article Number: 43464006
- Manufacturer number: AV 3024
- Stroke: 300 mm (12")

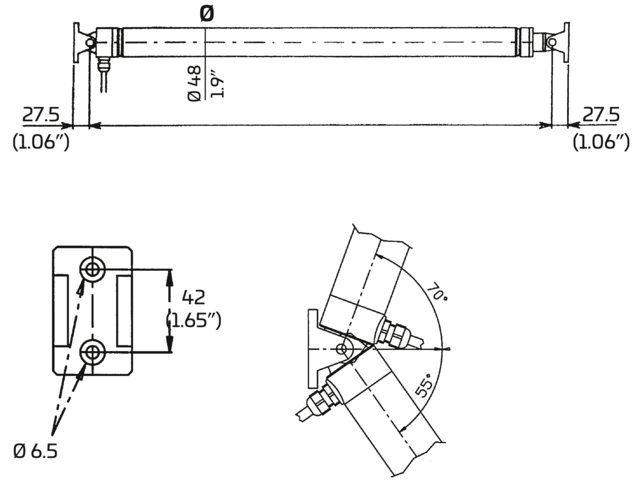

- Fully closed length: 677 mm
- Voltage: 24V
- Installation: Single or twin cylinder
- Maximum load capacity:
- Single: 1200N (120 kg / 265 lbs)
- Twin: 2400N (240 kg / 529 lbs)

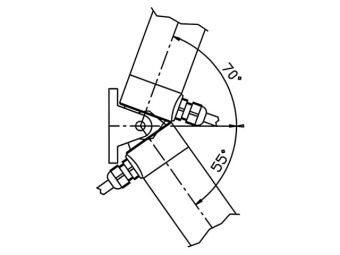

- Maximum oscillation range: 125°
- Diameter: Ø 48 mm

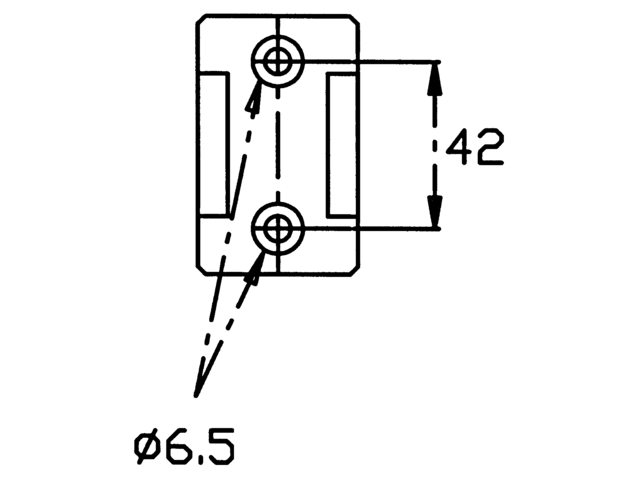

- Includes mounting hardware
- Equipped with circuit breaker to prevent accidental overload
- Electronic stops at fully closed or fully open positions
- Stainless steel ram arm
- Speed:
- 25 mm/sec (no load)
- 17 mm/sec (maximum load)
- Current absorption:
- 12V: 10A
- 24V: 5A
- Control box (relay) and switch available separately
- 12V models ignition protection applies according to ISO8846 and UL1500
-
