The Dometic DCC 2412-20 unit converts a 24V input to a stable 13.8V output at 20A, designed for efficient voltage regulation with an 87% yield. It offers galvanic isolation, pure output voltage, parallel operation, vehicle EMC optimization, and includes features such as battery charging with IU-characteristic, toggle control input, and stabilization during engine start.
- Description
- Ask a Question
-

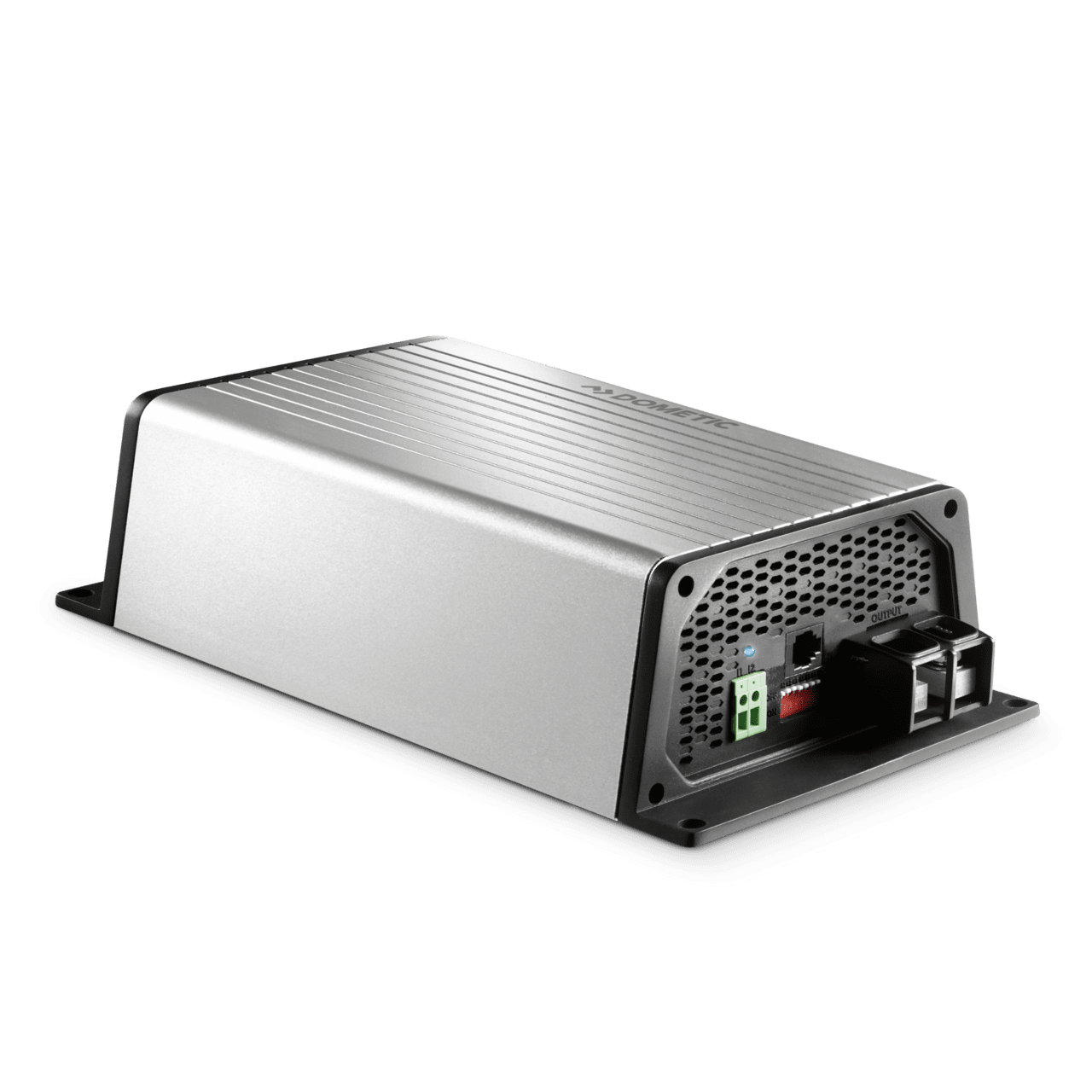

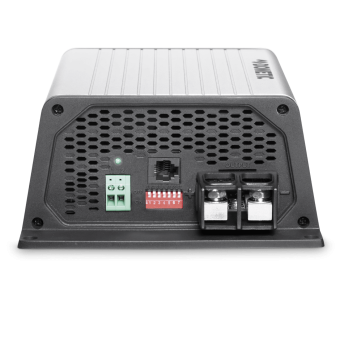

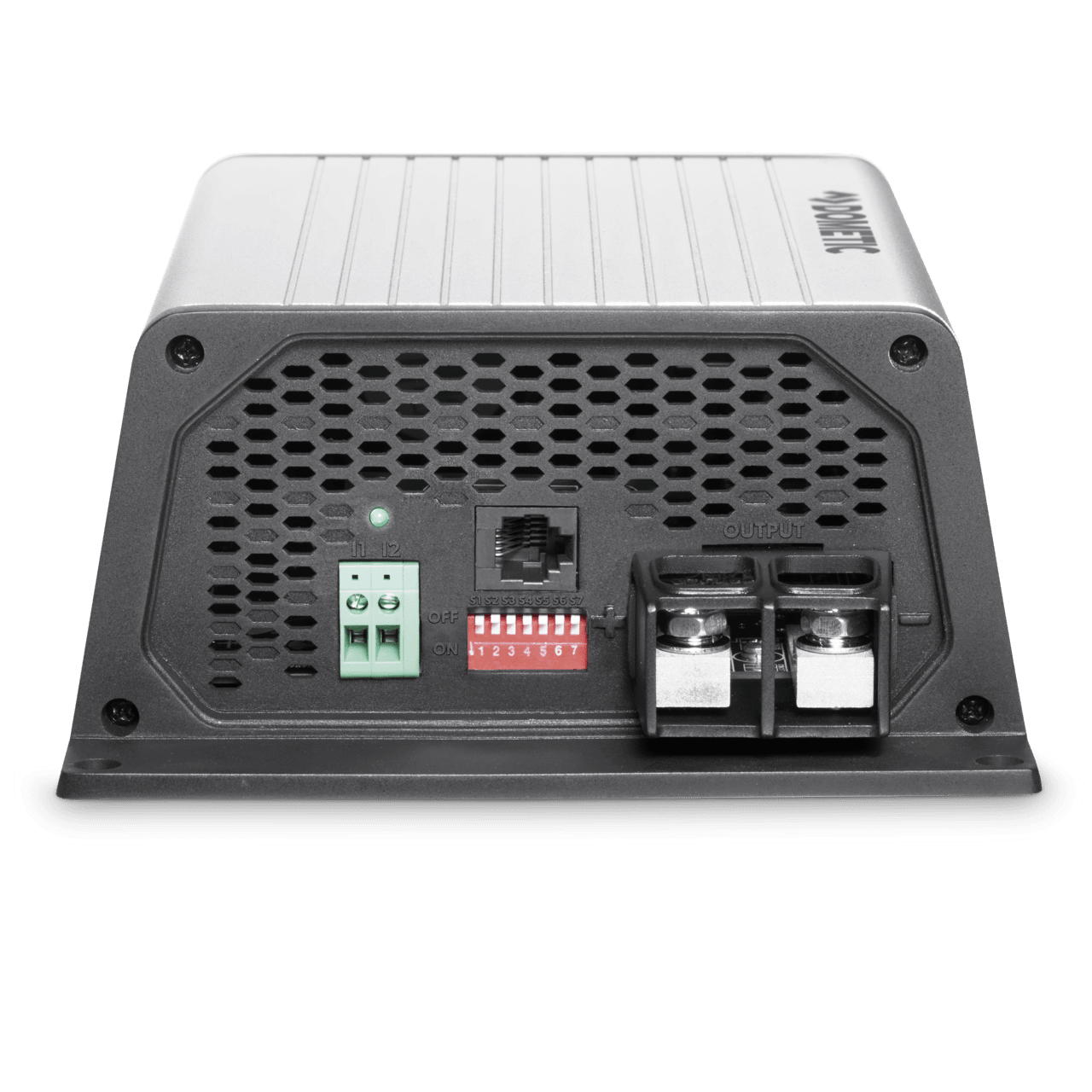

Dometic DCC 2412-20 - Perfect Power Charging Converter 20A
This unit converts a 24V input to a stable 13.8V output at 20A, designed for efficient voltage regulation with an 87% yield.
- Article Number: 14655026
- Type: DC2412-20
- Input voltage: 24V
- Output voltage: 13.8 ± 0.1V
- Output current: 20A
- Voltage conversion: 24 → 12
- Yield: 87%
- Dimensions (W x H x D mm): 115 x 70 x 155
- Weight: 1.2 kg
- Features:
- Voltage converter available in 10A, 20A, or 40A versions
- High efficiency output
- Galvanic isolation
- Pure output voltage
- Supports parallel operation
- EMC optimized for vehicle applications
- Battery charging voltage with IU-characteristic
- Additional input for toggle control
- Battery and generator stabilization
- On-board voltage stabilization during engine start
-
