SKU:
ALP 64BS11020
€ 59,19
1-2 weeks delivery time
-
+
The Sierra BS11020 Battery Switch is a durable, four-function switch supporting two batteries with ergonomic removable knob, glass fiber reinforced nylon housing, flexible mounting, and CE/IP66 certifications.
- Description
- Ask a Question
-

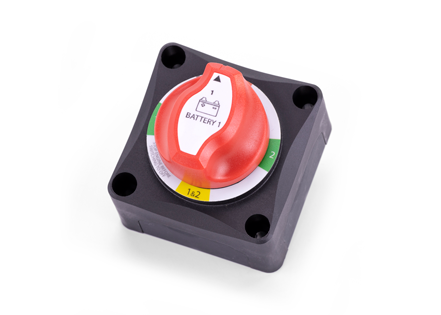

Sierra BS11020 - Battery Switch, 1-2-Both-Off, 200A Continuous
The Sierra BS11020 Battery Switch is a four-function switch supporting two battery inputs. It includes the 1-2-Both-Off functionality and features a unique, removable ergonomic knob for enhanced safety and isolation. The robust glass fiber reinforced nylon enclosure ensures durability, and the switch offers flexible installation options, either surface or panel mount. The switch meets ignition protection standards (ISO8846/ SAE J1171) and is CE certified and IP66 rated.
- Article number: 64BS11020
- Function: 1-2-BOTH-OFF
- Maximum Voltage Rating: 48VDC
- Cranking Rating (10 Seconds): 1000A
- Intermittent Rating (5 Minutes): 300A
- Continuous Rating: 200A
- Battery Input: 2
- Switch Function: 4
- Battery Studs: Tin-Plated Copper
- Stud Torque: 120 lb.-in
- Cable Size: 4/0 AWG to meet ratings
- Features:
- Ergonomic and aesthetic removable knob
- Glass fiber reinforced nylon enclosure
- Flexible mounting options: surface or panel mount
- Removable windows for unobstructed wiring
- Interchangeable knob labels
- Certifications: CE Certified, IP66 Rated
-
