The Quick QNC CHC is a reliable and efficient chain counter designed for remote windlass operation on boats. Featuring a high-brightness 3.5" color display, it accurately shows the length of the lowered chain in meters, feet, or fathoms. The user-friendly interface and touch control make it easy to operate, while the durable black tempered glass panel ensures longevity. This versatile device is compatible with various windlasses and includes a complete installation kit for straightforward setup.

Description
Ask a Question

Quick FNQNCCHCF000B00 - QNC CHC FLUSH MOUNT CHAIN COUNTER B00

The Quick QNC CHC is an advanced and dependable tool designed for the efficient remote operation of windlasses, while simultaneously providing accurate measurements of the length of the chain lowered. With its 3.5” high-brightness IPS color display, users can easily view the lowered chain length in meters, feet, or fathoms, ensuring optimal performance and convenience during boating activities. The panel is elegantly constructed from black tempered glass, featuring touch control function keys for seamless operation.

Technical Specifications
- Brand: Quick
- Voltage Description: 12V - 24V DC
- Amps Description: 160 mA absorbed when idling

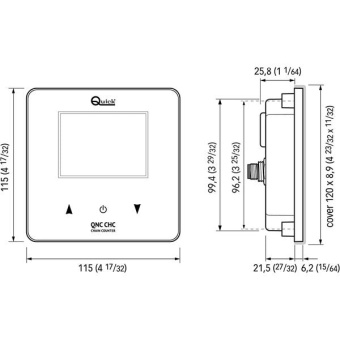

- Height: 115mm (4-17/32"), with Cover: 120mm (4-23/32"), Behind Surface: 99.4mm (3-29/32")
- Width: 115mm (4-17/32"), with Cover: 120mm (4-23/32"), Behind Surface: 99.4mm (3-29/32")
- Depth: Above Surface: 6.2mm (15/64"), with Cover: 8.9mm (11/32"), Behind Surface: 25.8mm (1-1/64")
- Weight: 270g (320g with protective cover)
- Operating Temperature: -20°C to +70°C (-4°F to +158°F)
- Dimensions: Distance between fixing hole centres: 96.2mm (3-25/32")
Key Features
- Automatic descent function for ease of use.
- Up alarm function to enhance safety.
- Anchor weighing function in case of sensor failure.
- Windlass management with auto free fall capability.
- High brightness 3.5” color graphic display for clear visibility.
- Multilingual user interface for international accessibility.
- Power supply compatibility of 12/24 Vdc.
- Functional across a wide range of environmental temperatures.
- CAN bus Communication Interface for seamless connectivity.
This product comes with a complete package including the chain counter QNC CHC, a protective cover, a chain counter sensor kit, fastening screws, a gasket, a power supply cable with I/O (0.5 m), a drilling template, an installation and user manual, and warranty conditions. The Quick QNC CHC chain counter is an essential addition to any boating enthusiast's toolkit, offering reliability and precision in measuring chain lengths.
