SKU:
CN VIORI241236140
€ 242,88
1-2 weeks delivery time
Price incl. 19% VAT
Price incl. 19% VAT
-
+
The Osculati 14.277.46 Orion-Tr Smart 24/12-30A is a 360 W non-isolated DC-DC charger designed for 24 V to 12 V dual-battery systems on boats, RVs, and vehicles. With a wide 20–35 V input range, it delivers 12.2 V output at 30 A continuous (up to 45 A peak), using a programmable 3-stage charging algorithm for lithium and lead-acid batteries. The charger features Bluetooth connectivity for configuration and monitoring, engine detection for automatic activation, and parallel connection support to expand system capacity. Dimensions: 130 × 186 × 70 mm. Weight: 1.8 kg.
- Description
- Ask a Question
-

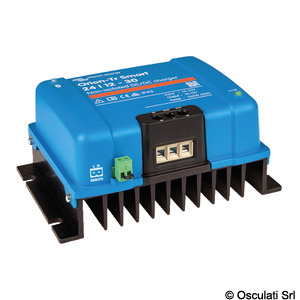

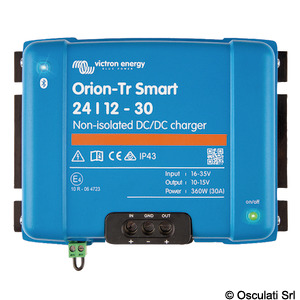

Osculati 14.277.46 – Orion-Tr Smart 24/12-30A (360W) Non-isolated DC-DC Charger
The Osculati Orion-Tr Smart 24/12-30A (item 14.277.46) is a robust, smart DC-DC charger designed to step down voltage from 24 V systems to 12 V auxiliary batteries. Ideal for dual-battery setups, it delivers up to 30 A continuous and 45 A peak charging current at 12.2 V output. Compatible with both lead-acid and lithium batteries, it features a programmable 3-stage charging algorithm to maximize battery health and performance. Integrated Bluetooth allows wireless monitoring and setup via mobile app, while the engine detection function enables automatic operation. Multiple units can be paralleled to increase total charging capacity.
Item Type Input Voltage Output Voltage Max Output (A) Continuous Output (A) Dimensions (mm) Weight (kg) 14.277.46 24-12-30 20–35 V 12.2 V 45 A 30 A 130 × 186 × 70 1.8
Main Features:
- 360 W 3-stage DC-DC charger from 24 V to 12 V systems
- Non-isolated design suitable for dual-battery setups
- Compatible with lead-acid and lithium batteries
- Bluetooth-enabled for real-time monitoring and setup
- Automatic engine detection function
- Supports parallel installation for increased output
- 30 A continuous, 45 A peak current output
Applications:
- Marine dual-battery systems
- 24 V vehicle systems charging 12 V auxiliary batteries
- Lithium battery integration in boats and RVs
- Remote-controlled charging systems with scalable output
Documents
Osculati Catalogue 2025 - page 244 Size: 295,1 Kb -
