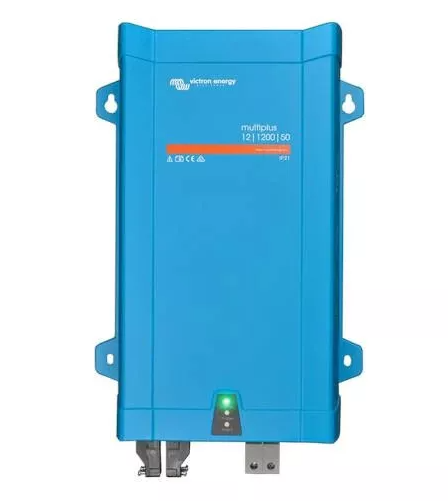

Osculati 14.268.02 - Victron Energy Multiplus 12/1200/50 Inverter/Charger

Osculati 14.268.02 - Victron Multiplus 12/1200/50 Inverter/Charger

The Victron Multiplus 12/1200/50 Inverter/Charger offers a powerful, all-in-one solution for AC power generation and intelligent battery charging. It is specifically engineered for 12V systems and supports both lithium and traditional battery types. This model delivers a pure sine wave 230V output at 1200W continuous power, paired with a sophisticated 4-stage 50A battery charger.

It features two AC outputs: the primary output delivers continuous power, while the secondary is only enabled when an external AC source is available — ideal for connecting high-draw appliances such as water heaters that should not deplete battery reserves. The system is protected against overvoltage, undervoltage, overtemperature, short circuit, and high ripple frequency.

Victron’s exclusive PowerControl and PowerAssist functionalities make this model ideal for use with limited generator or shore power. The unit can supplement peak power demands by drawing on battery reserves, and when loads decrease, recharge the battery using surplus power. Its scalability supports up to six parallel or three-phase interconnected units for larger systems.

Key Features:

• Pure sine wave inverter with 1200W continuous output
• Intelligent 4-stage battery charger: 50A main + 4A secondary
• Compatible with lithium and lead-acid battery technologies
• Dual AC outputs:
  • Main output: always active
  • Second output: active only when AC input is present
• PowerControl – limits AC input draw to prevent overload
• PowerAssist – supports peak loads using battery energy
• Parallel and three-phase capable (up to 6 units, or 6×3 arrays)
• Rugged aluminum casing
• Protection against:
  • Short circuit
  • Battery over/under voltage
  • Overcharging
  • High ripple frequency
  • Overheating

Technical Specifications:

*Second AC output is only active when an external AC source is connected.
