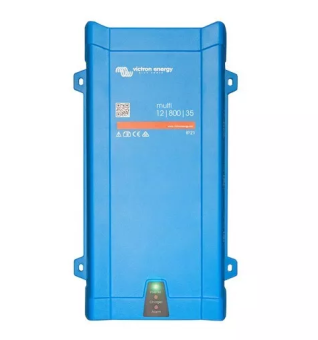

Osculati 14.268.01 - Victron Energy Multiplus 12/800/35 Inverter/Charger

Osculati 14.268.01 - Victron Multiplus 12/800/35 Inverter/Charger

The Victron Multiplus 12/800/35 combines an intelligent pure sine wave inverter and an advanced 4-stage battery charger into a compact and powerful device. This model is designed for 12V DC battery systems and is compatible with both conventional and lithium-based batteries, offering maximum versatility in marine, mobile, and off-grid applications.

Its 800W inverter ensures clean, stable 230V AC output for sensitive electronics, while the integrated 35A battery charger delivers a precise 4-stage charge profile (Bulk, Absorption, Float, Storage) for optimal battery maintenance. A second AC output is available and activates only when an external AC source is present, ideal for high-drain appliances like boilers that should not operate on battery power.

The unit supports both PowerControl and PowerAssist technologies: it intelligently manages available shore or generator power, preventing overloads by regulating battery charging, and supplements power demand by pulling from the battery during peak loads. The aluminum housing and embedded protections against short circuit, high ripple, over/under voltage, and thermal events ensure reliable and safe operation.

Key Features:

• Pure sine wave inverter – 800W continuous power
• Smart 4-stage battery charger: 35A main + 4A secondary output

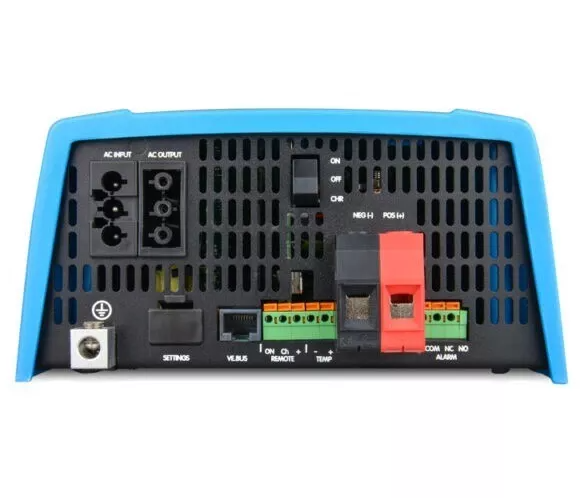

• Dual AC outputs:
  • Main: continuous power
  • Secondary: active only with AC source present
• PowerControl – limits AC input draw to prevent overloads
• PowerAssist – temporarily supports loads with battery power during peaks
• Parallel operation: up to 6 units
• Three-phase configuration: 3 identical units
• Aluminum casing with advanced safety protections:
  • Short circuit
  • Battery over/undervoltage
  • High ripple frequency
  • Overcharge
  • Overtemperature

Technical Specifications:

*Second AC output is only active when an external AC power source is present.
