SKU:
LNK 89300039
€ 6.051,92
1-2 weeks delivery time
-
+
The Lewmar 89300039 Direct Drive 1/4HP 12V with Draglink is a powerful and flexible steering unit designed for mounting near the rudder or connected to the pedestal or gearbox lever. It offers high torque, minimal drag when disengaged, and compatibility with Constellation, Cobra, and Mamba steering systems, including essential components like a draglink and drive assembly.
- Description
- Ask a Question
-

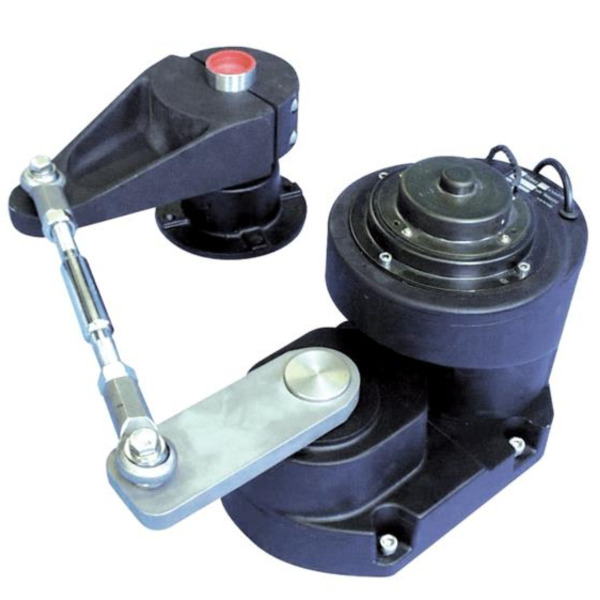

Lewmar 89300039 - Direct Drive 1/4HP 12V And Draglink
This robust Direct Drive unit offers high torque and installation flexibility, designed to be mounted close to the rudder or connected to the pedestal or gearbox lever. It provides exceptional performance with minimal drag, even when disengaged, and includes a draglink for direct mechanical connection.
- Drive Type: SN255DD
- Horsepower: 1/4 HP
- Voltage: 12V
- No Load Speed: 10 sec
- Maximum Rudder Load: 248 ft lbs
- Average Current Consumption: 4A
- Weight: 8.8 kg
- Output Lever Centre: 166 mm
- Extremely powerful - torque up to 2432 Nm / 1794 ft lbs
- Virtually zero steering resistance when idle
- Compact and mountable in any orientation
- Compatible with Constellation, Cobra, and Mamba steering systems
- Includes:
- 1 x DRIVE ASSY 1/4HP 12V 166L (Part No. 85008161)
- 1 x LINK 1000MM AHFT10 OEL (Part No. 89500011)
-
