SKU:
LNK 76412068
€ 1.572,21
1-2 weeks delivery time
-
+
The Lewmar HX1 Horizontal Windlass 800 GF features a robust cast alloy and composite casing with an anodized aluminum chassis and polymer cover. It is powered by a high-performance 800W inline motor with an efficient epicyclical gearbox, delivering quiet and reliable operation. The unit is waterproof, low maintenance, and rated IP67, capable of a maximum pull of 1065 kg and a working load limit of 266 kg.
- Description
- Ask a Question
-

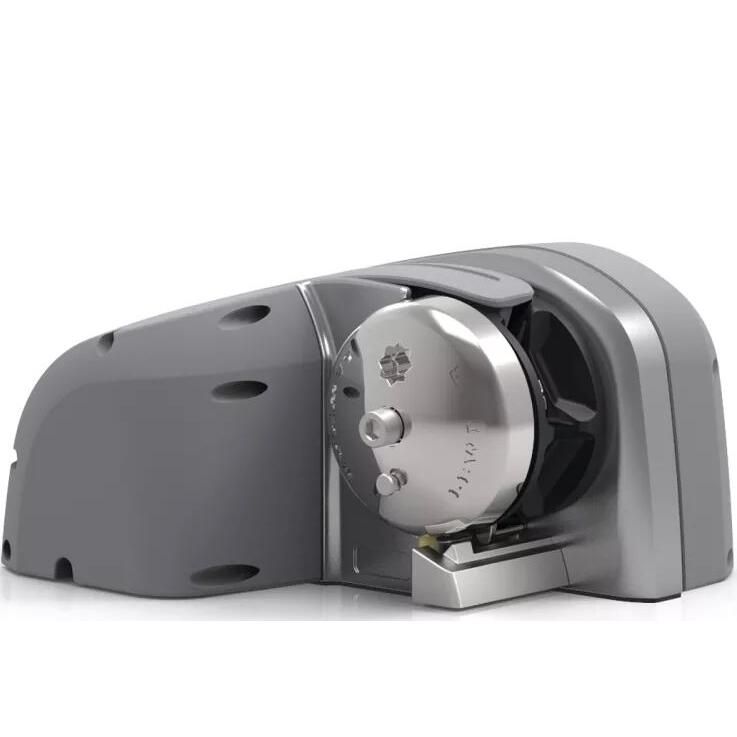

Lewmar 69140012 - HX1 Horizontal Windlass 800 GF 8mm STD Kit
The HX1 Horizontal Windlass 800 GF features the same sturdy construction with a cast alloy and composite casing, anodized aluminum chassis, and polymer cover as other HX models. It includes a high-power 800W inline motor with epicyclical gearbox for efficient, quiet, and reliable performance.
- Motor power: 800W (also available in 500W), 12V
- Chain size: 8mm
- High-efficiency epicyclical gearbox
- Sealed waterproof unit with low maintenance
- Anodized aluminum chassis with durable polymer cover
- IP67 rated as standard
- Quiet operation
- Max Pull: 1065 kg (2348 lbs)
- Working Load Limit: 266 kg (586 lbs)
- Max Line Speed: 21 m/min (63 ft/min)
- Normal Current Draw: 105A
- Circuit Breaker: 70A
- Approximate Weight (Gypsy Only): 9 kg (20 lbs)
- Approximate Weight (Gypsy/Drum): 9.5 kg (21 lbs)
-
