SKU:
LNK 76412064
€ 1.545,81
1-2 weeks delivery time
-
+
The Lewmar 69140008 HX1 Horizontal Windlass 800 GD combines a silent planet drive with a robust anodized aluminum base and composite or aluminum hood. It features IP67 motor protection, 800W motor power, max pull force of 1065 daN, max line speed of 21 m/min, and low maintenance.
- Description
- Ask a Question
-

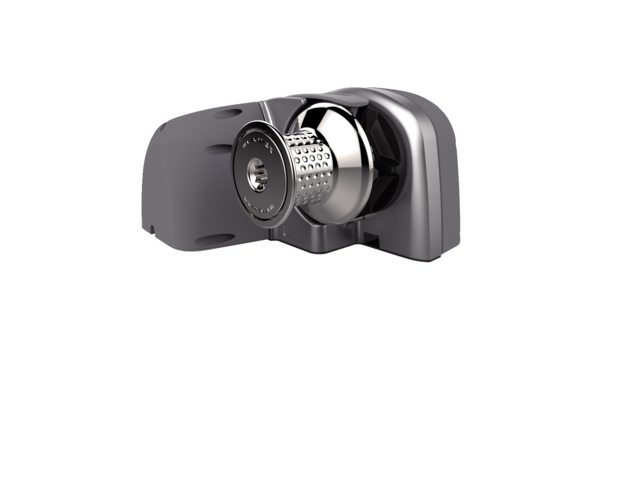

Lewmar 69140008 - HX1 Horizontal Windlass 800 GD 8mm STD Kit
The HX Series horizontal windlass features a silent planet drive and a robust anodised aluminium base, with the option of a composite or aluminium hood. It is simple to mount and comes with a combination of chain drive and capstan (GD). A freefall conversion kit is available separately for the GO version only.
- Waterproof sealed deck unit
- Low maintenance requirement
- Silent operation
- Available with 500W and 800W engines
- IP67 motor protection rating
- Power supply: 12V
- Max motor power: 800W
- Maximum pull force: 1065 daN
- Maximum line speed: 21 m/min
- Working load: 266 daN
- Weight: 9.5 kg
- Circuit breaker rating: 70 A
- Chain size: 8 mm DIN766
-
