The Lewmar 69140005 HX1 Horizontal Windlass 500 GD features a silent and efficient planet drive with an anodized aluminum base and composite or aluminum hood. It supports chain drive and capstan, includes waterproof sealing, low maintenance, 500W or 800W motors, and a max pull force of 700 daN.
- Description
- Ask a Question
-

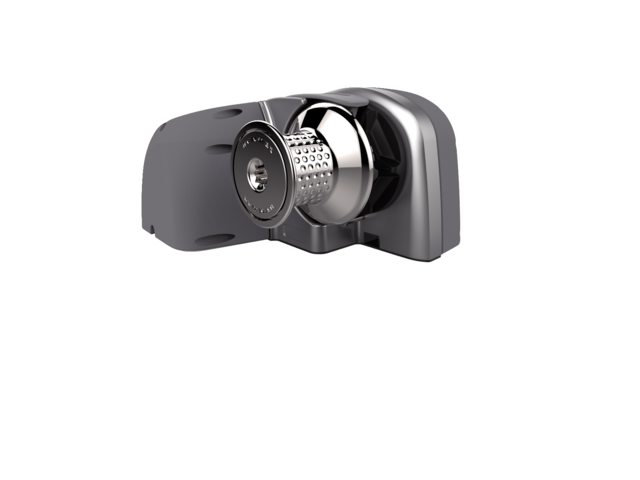

Lewmar 69140005 - HX1 Horizontal Windlass 500 GD 6/7mm STD Kit
The HX Series horizontal windlass uses a silent and efficient planet drive. It has a durable anodised aluminium base with options for a composite or aluminium hood. The deck unit supports easy installation and is available with a combination of chain drive and capstan (GD). A freefall conversion kit is sold separately and only works with the GO version.
- Waterproof sealed deck unit
- Low maintenance design
- Quiet operation
- Available with 500W and 800W engines
- Motor protection rated IP67
- Power supply: 12V
- Max motor power: 500W
- Maximum pull force: 700 daN
- Maximum line speed: 20 m/min
- Working load: 175 daN
- Weight: 9.5 kg
- Circuit breaker rating: 50 A
- Chain size: 6/7 mm DIN766
-
