SKU:
LNK 76412060
€ 1.422,12
1-2 weeks delivery time
-
+
The Lewmar 69140004 HX1 Horizontal Windlass 800 GO combines a silent planet drive with a strong anodized aluminum base and composite or aluminum hood. It offers easy mounting, IP67 motor protection, 800W motor power, max pull force of 1065 daN, and a max line speed of 21 m/min.
- Description
- Ask a Question
-

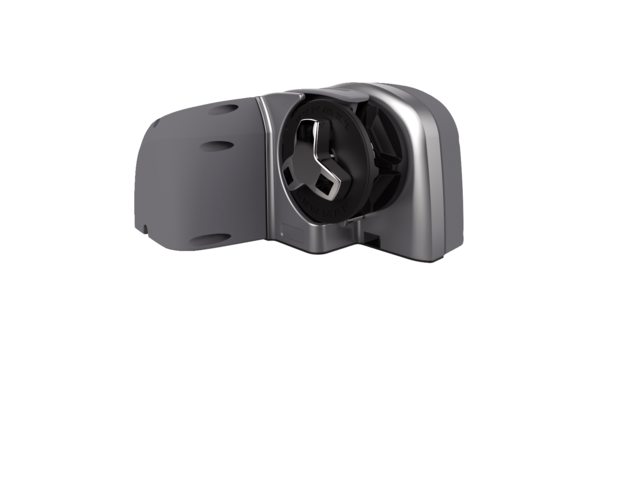

Lewmar 69140004 - HX1 Horizontal Windlass 800 GO 8mm STD Kit
The HX Series horizontal anchor windlass is equipped with a silent and efficient planet drive. It features a strong anodized aluminum base with options for a composite or aluminum hood. The deck unit offers easy and rapid mounting, available with a single chain drive (GO) or a combination chain drive and capstan (GD). A freefall conversion kit is available separately for the GO version only.
- Waterproof sealed deck unit ensures long-lasting durability
- Low maintenance requirements
- Quiet operation thanks to silent planet drive
- Available in 500W and 800W engine options
- Motor protection IP67 standard
- Power supply: 12V
- Max motor power: 800W
- Maximum pull force: 1065 daN
- Maximum line speed: 21 m/min
- Working load: 266 daN
- Weight: 9.0 kg
- Circuit breaker rating: 70 A
- Chain size: 8 mm DIN766
-
