The Lewmar 69140001 HX1 Horizontal Windlass 500 GO offers a quiet and efficient planet drive system with an anodized aluminum base and composite or aluminum hood. It includes waterproof sealing, low maintenance, 500W or 800W motors, IP67 protection, and supports a max pull force of 700 daN with a max line speed of 20 m/min.
- Description
- Ask a Question
-

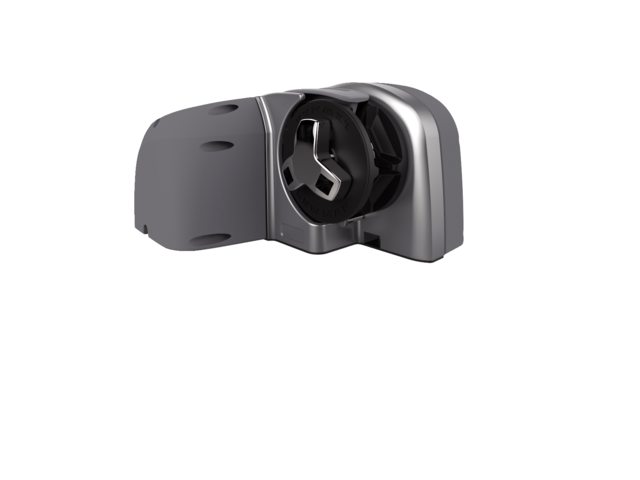

Lewmar 69140001 - HX1 Horizontal Windlass 500 GO 6/7mm STD Kit
The HX Series horizontal anchor windlass features a quiet and efficient planet drive system. Constructed with a robust anodized aluminum base and a choice between a strong composite or aluminum hood, it is designed for quick and straightforward mounting. The deck unit is available with either a single chain drive (GO) or a combination chain drive and capstan (GD). A freefall conversion kit is sold separately and only compatible with the GO version.
- Waterproof sealed deck unit for durability
- Requires low maintenance
- Quiet operation with silent planet drive
- Engines available in 500W and 800W options
- IP67 motor protection rating
- Power supply: 12V
- Max motor power: 500W
- Maximum pull force: 700 daN
- Maximum line speed: 20 m/min
- Working load: 175 daN
- Weight: 9.0 kg
- Circuit breaker rating: 50 A
- Chain size: 6/7 mm DIN766
-
