€ 1.885,53
1-2 weeks delivery time
-
+
The Lewmar 69120074 VX3 GD is a 12V vertical windlass combining gypsy and capstan with lightweight stainless steel and composite construction. Designed for vessels 8.5 to 15 meters, it features hybrid chain drive, IP68 motor protection, and worm gear transmission. It supports a 10mm DIN chain and offers a max pull of 1175 daN with a 1500W motor.
- Description
- Ask a Question
-

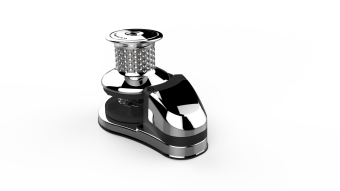

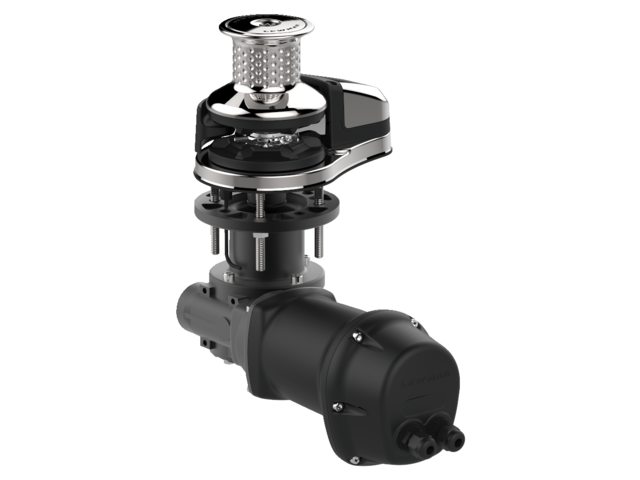

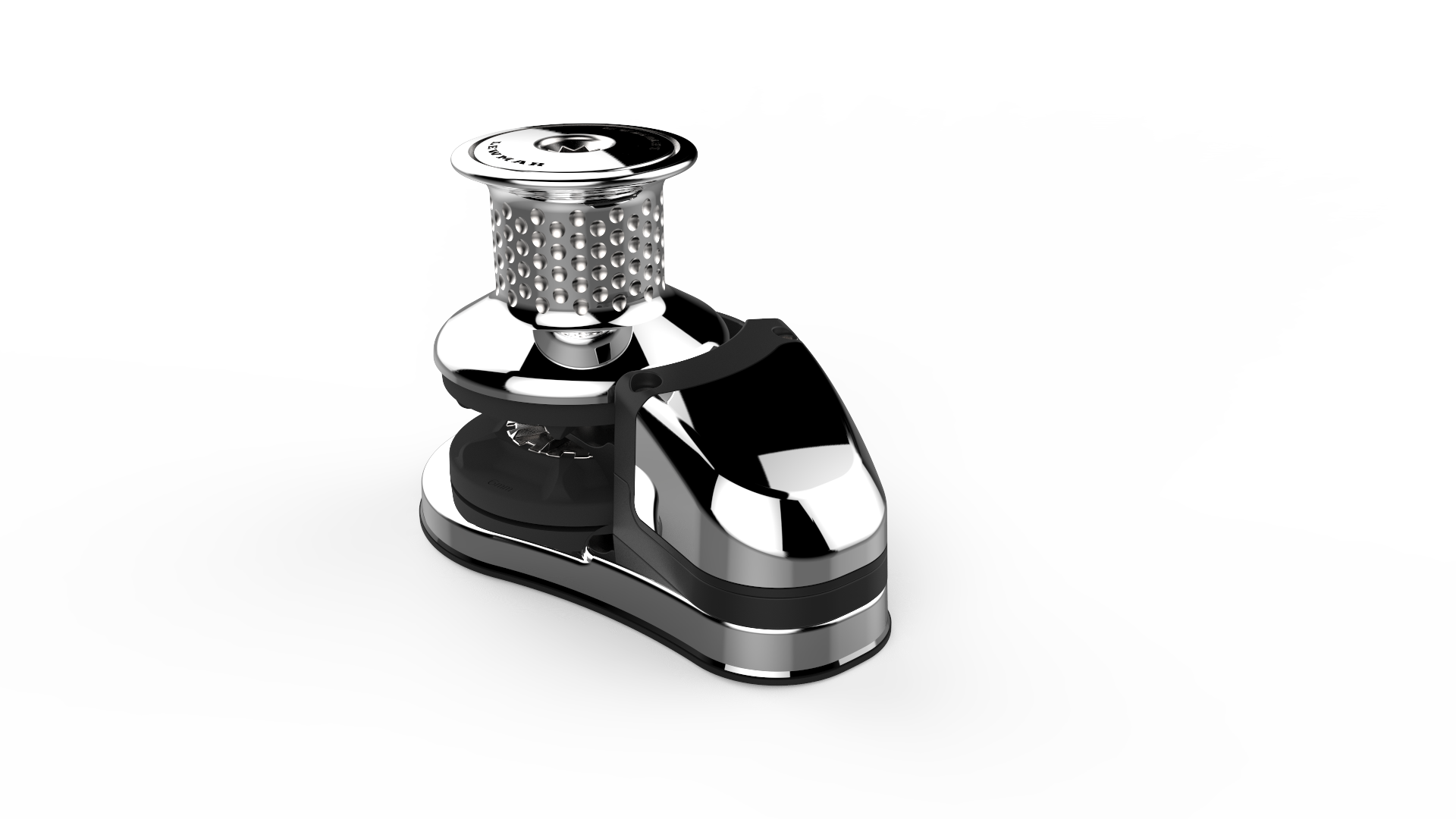

Lewmar 69120074 - Vertical Windlass VX3 GD 10MM DIN Gypsy 12V - 1500W
This VX3 GD version combines gypsy and capstan functions with advanced lightweight construction using stainless steel and composite parts. It is engineered for vessels sized 8.5 to 15 meters (28ft - 50ft) and offers reliable and quiet operation.
- Article Number: 76412044
- Manufacturer number: 69120074
- Lewmar type: VX3 GD
- Power supply: 12V
- Maximum motor power: 1500W
- Maximum pull force: 1175 daN
- Maximum line speed: 40 m/min
- Working load: 294 daN
- Weight: 17.1 kg
- Circuit breaker rating: 110A
- Chain size (DIN766): 10 mm
- Features:
- Hybrid chain drive for quieter operation and better chain flow
- Standard IP68 and non-sparking motor protection
- Engines available in 500W, 700W, 1000W, and 1500W
- Lightweight composite components
- Worm gear transmission for dependable performance and safety
- Intended for ships 8.5 - 15 meters (28ft - 50ft)
- 24V versions of VX2 & VX3 series available upon request
-
