€ 1.832,50
1-2 weeks delivery time
-
+
The Lewmar 69120072 VX3 GD combines gypsy and capstan functions in a stainless steel and composite deck unit for boats 8.5 to 15 meters long. This 12V windlass features a hybrid chain drive, IP68 motor protection, and worm gear transmission. It supports an 8mm DIN chain, has a 1500W motor, and a max pull force of 1175 daN.
- Description
- Ask a Question
-

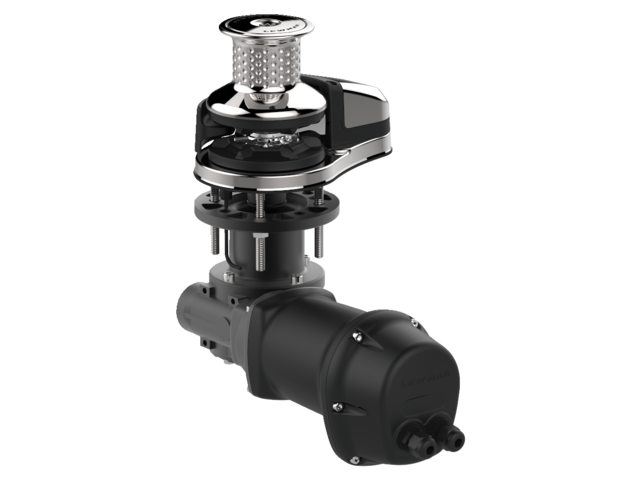

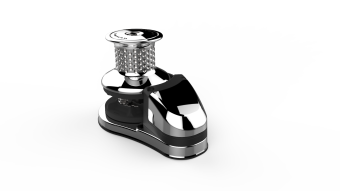

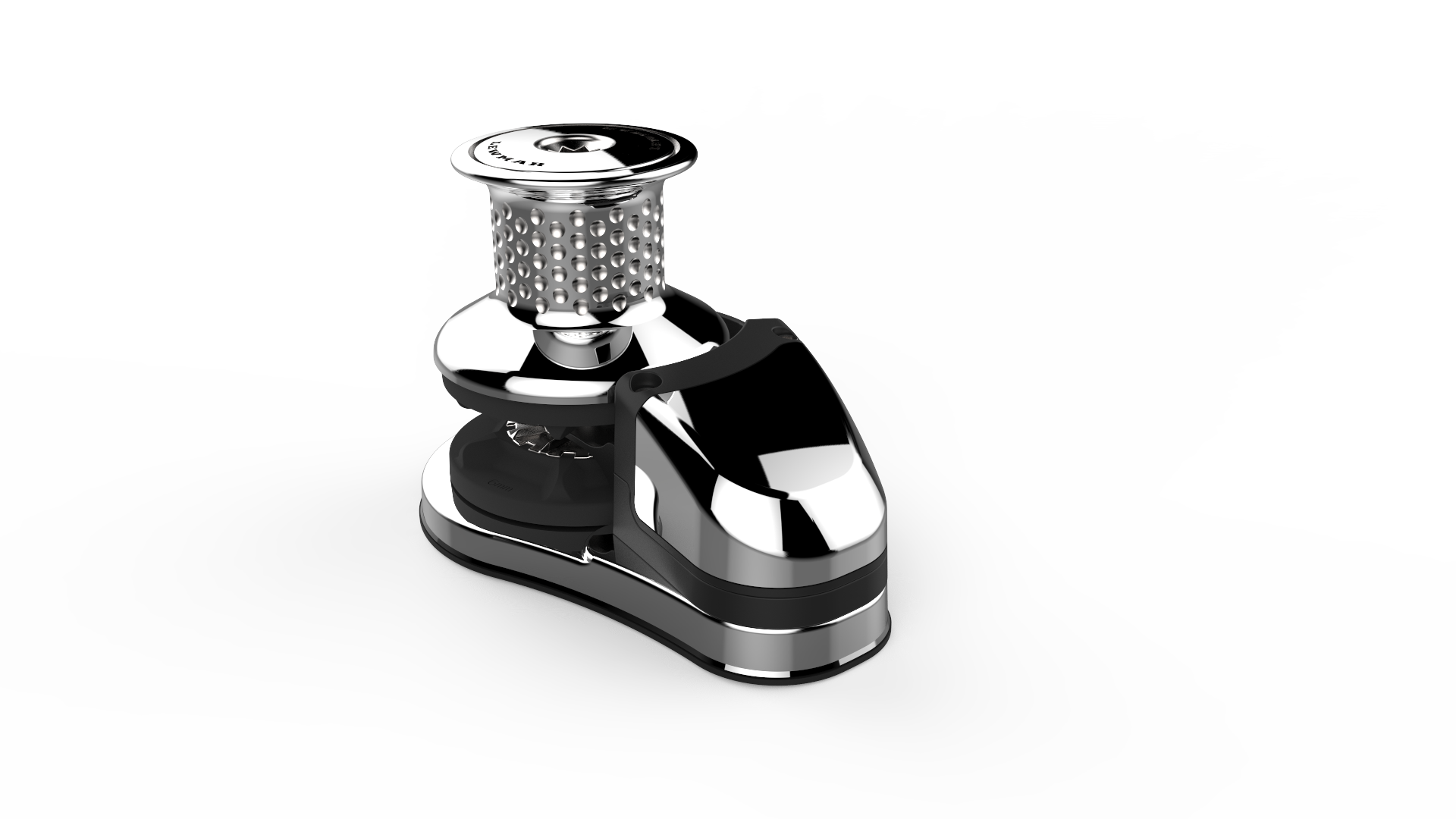

Lewmar 69120072 - Vertical Windlass VX3 GD 8mm Gypsy 12V - 1500W
The VX3 GD model incorporates a combination of gypsy and capstan (GD) in the deck unit, constructed with stainless steel and composite materials. Designed for boats between 8.5 and 15 meters (28ft - 50ft), it offers quiet and efficient operation.
- Article Number: 76412043
- Manufacturer number: 69120072
- Lewmar type: VX3 GD
- Power supply: 12V
- Maximum motor power: 1500W
- Maximum pull force: 1175 daN
- Maximum line speed: 40 m/min
- Working load: 294 daN
- Weight: 17.1 kg
- Circuit breaker rating: 110A
- Chain size (DIN766): 8 mm
- Features:
- Hybrid chain drive enhances quietness and chain throughput
- IP68 and non-sparking motor protection included
- Available with motors of 500W, 700W, 1000W, and 1500W
- Composite parts reduce weight
- Worm gear transmission for durability and safety
- Suitable for vessels 8.5 - 15 meters (28ft - 50ft)
- VX2 & VX3 series also available in 24V on request
-
