€ 1.691,45
1-2 weeks delivery time
-
+
The Lewmar 69120054 VX2 GD is a vertical windlass combining gypsy and capstan functions in a lightweight stainless steel and composite deck unit. It features a hybrid chain drive for quiet operation, an IP68 rated motor, and a reliable worm gear transmission, designed for boats between 8.5 and 15 meters. It operates on 12V with a 700W motor, supports a 10mm DIN chain, and has a max pull of 850 daN.
- Description
- Ask a Question
-
Lewmar 69120054 - Vertical Windlass VX2 GD 10mm DIN Gypsy 12V - 700W

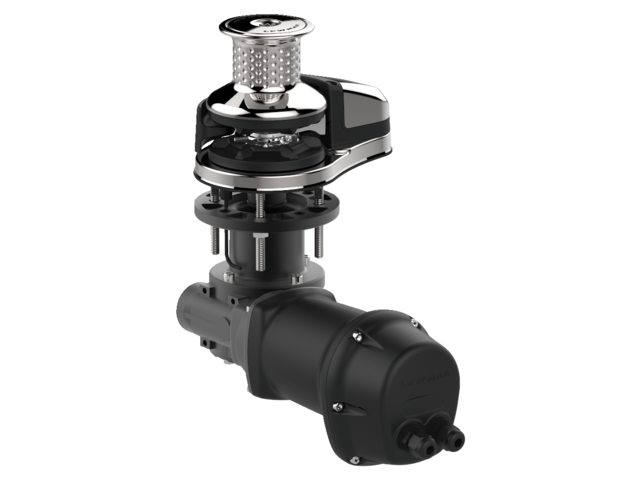

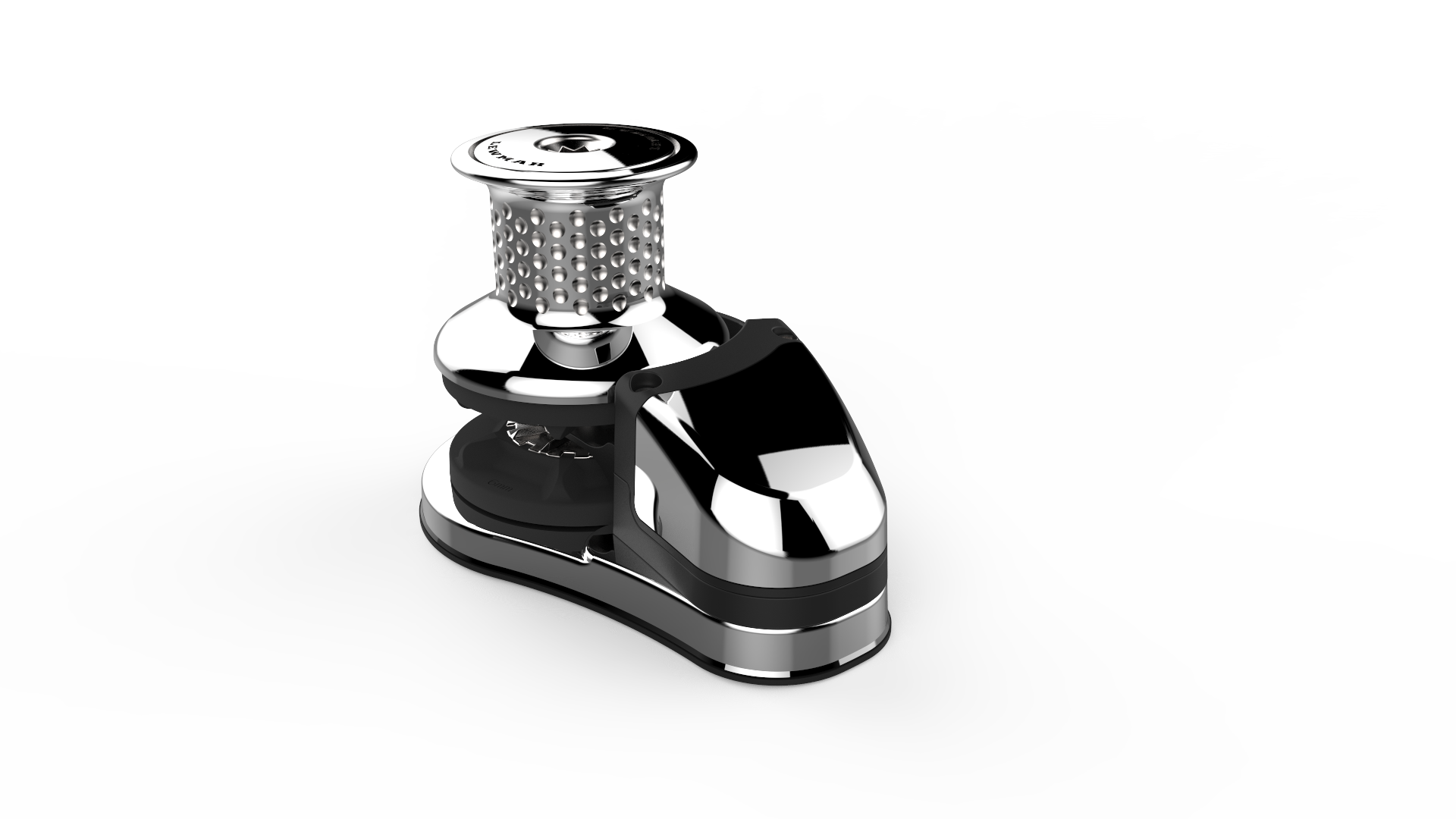

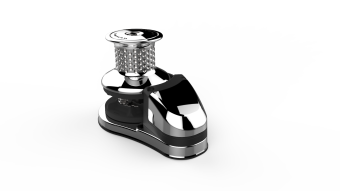

This VX2 GD model combines gypsy and capstan (GD) in a lightweight deck unit made from stainless steel and composite parts. The set contains the deck unit, motor/gearbox, relais, chain drive, and chain counter sensor, excluding switch and fuse.
- Hybrid chain drive for quieter and smoother chain operation
- IP68 rated motor with non-sparking protection standard
- Engine options include 500W, 700W, 1000W, and 1500W
- Composite components keep the unit lightweight
- Reliable and safe worm gear transmission
- Designed for boats 8.5 - 15 meters (28ft - 50ft)
- 24V versions of VX2 & VX3 series available on demand
- Article Number: 76412038
- Manufacturer Number: 69120054
- Type: VX2 GD
- Voltage: 12V
- Max Motor Power: 700W
- Max Pull: 850 daN
- Max Line Speed: 29 m/min
- Working Load: 213 daN
- Weight: 14.9 kg
- Circuit Breaker: 90 A
- Chain Size DIN766: 10 mm
-
