€ 1.644,65
1-2 weeks delivery time
-
+
Lewmar 69120052 is a VX2 GD windlass with a gypsy and capstan (GD) deck unit made from stainless steel and composite materials. The set includes deck unit, motor/gearbox, relay, chain drive, and chain counter sensor, excluding switch and fuse. It offers hybrid chain drive, IP68 rated non-sparking motor protection, 700W motor power, max pull force 850 daN, weighs 14.9 kg, and is designed for vessels 8.5 to 15 meters.
- Description
- Ask a Question
-

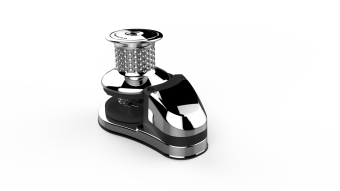

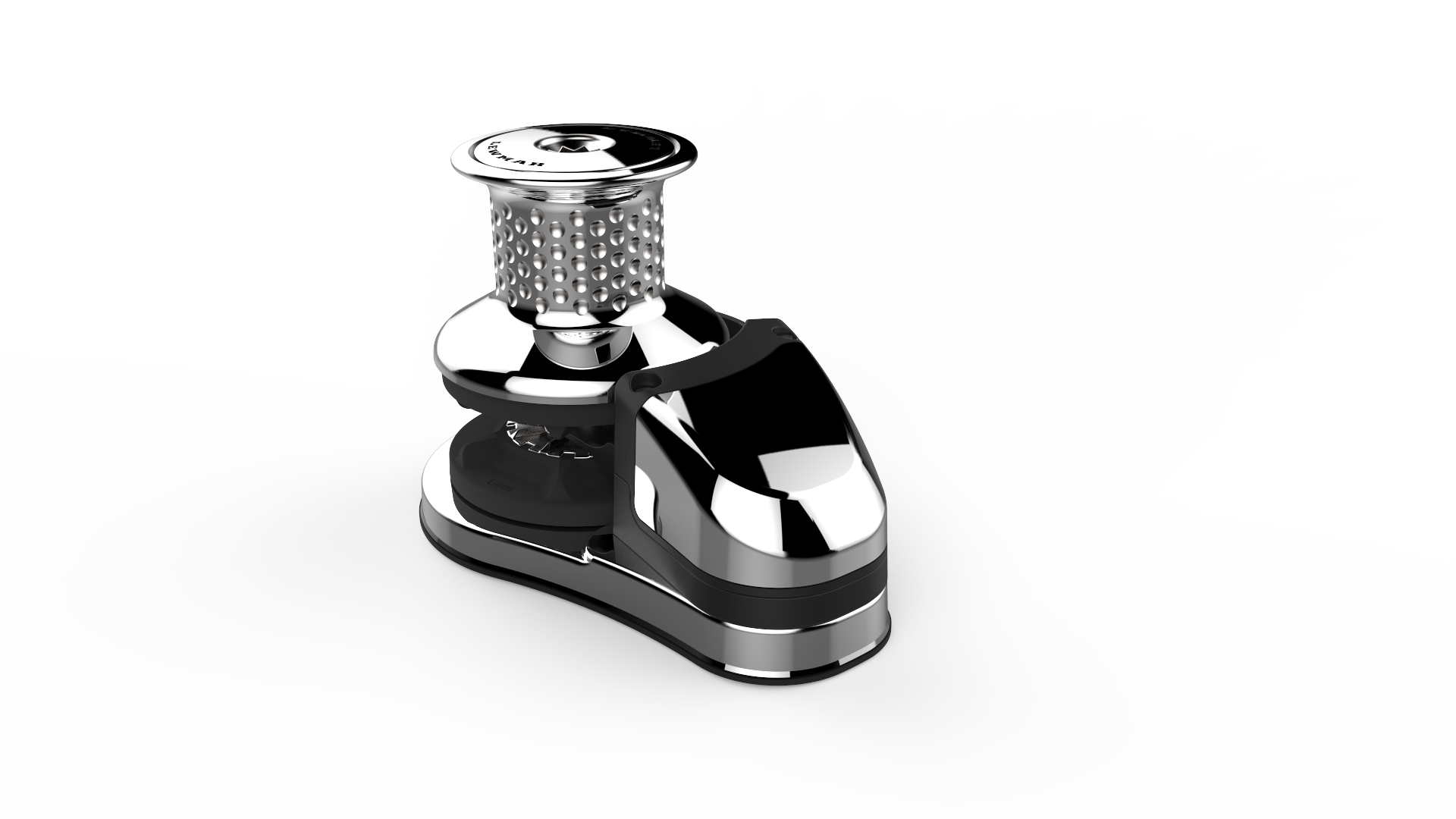

Lewmar 69120052 - Vertical Windlass VX2 GD 8mm Gypsy 12V - 700W

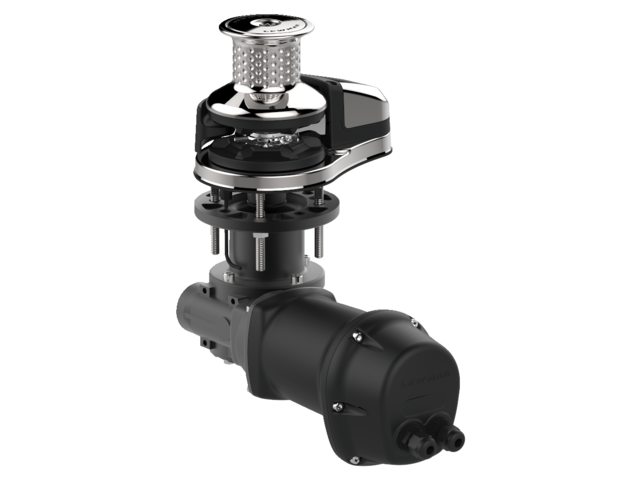

The VX2 GD windlass offers lightweight design and easy installation, featuring a deck unit with both gypsy and capstan (GD) made from stainless steel and composite materials. The package includes deck unit, motor/gearbox, relais, chain drive, and chain counter sensor, but excludes switch and fuse.
- Hybrid chain drive for quieter and enhanced chain flow
- Standard IP68 rating with non-sparking motor protection
- Available with engine options of 500W, 700W, 1000W, and 1500W
- Reduced weight due to composite components
- Worm gear transmission ensuring reliability and safety
- Suitable for vessels 8.5 - 15 meters (28ft - 50ft)
- VX2 & VX3 series available in 24V upon request
- Article Number: 76412037
- Manufacturer Number: 69120052
- Type: VX2 GD
- Voltage: 12V
- Max Motor Power: 700W
- Max Pull: 850 daN
- Max Line Speed: 29 m/min
- Working Load: 213 daN
- Weight: 14.9 kg
- Circuit Breaker: 90 A
- Chain Size DIN766: 8 mm
-
