€ 1.673,56
1-2 weeks delivery time
-
+
The Lewmar 69120044 VX3 GO offers a 12V gypsy-only windlass with lightweight stainless steel and composite parts. Designed for boats between 8.5 and 15 meters, it features a hybrid chain drive, IP68 motor protection, and worm gear transmission. It supports a 10mm DIN chain, with a max pull force of 1175 daN and a 1500W motor.
- Description
- Ask a Question
-

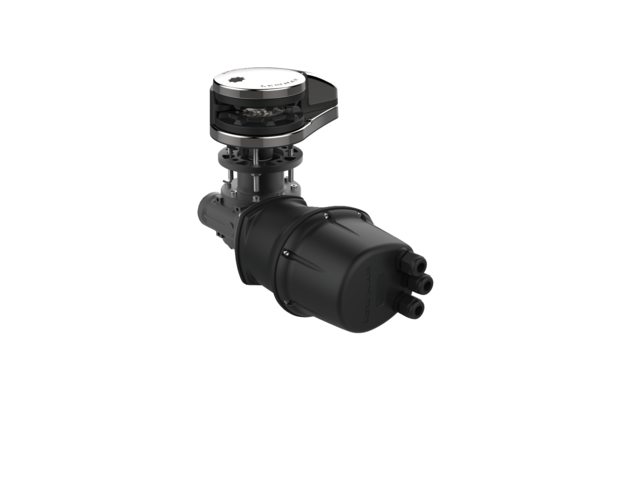

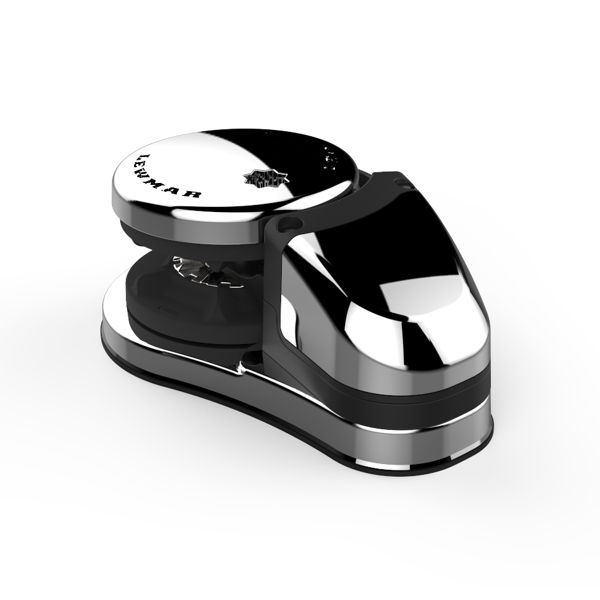

Lewmar 69120044 - Vertical Windlass VX3 GO 10mm DIN Gypsy 12V - 1500W
This VX3 GO windlass offers the latest lightweight design using stainless steel and composite materials. It is fitted with a gypsy only deck unit (GO), designed for vessels between 8.5 and 15 meters (28ft - 50ft), providing high performance and reliability.
- Article Number: 76412042
- Manufacturer number: 69120044
- Lewmar type: VX3 GO
- Power supply: 12V
- Maximum motor power: 1500W
- Maximum pull force: 1175 daN
- Maximum line speed: 40 m/min
- Working load: 294 daN
- Weight: 16.1 kg
- Circuit breaker rating: 110A
- Chain size (DIN766): 10 mm
- Features:
- Hybrid chain drive for quieter and improved chain throughput
- IP68 and non-sparking motor protection standard
- Available with engines of 500W, 700W, 1000W, and 1500W
- Lightweight design thanks to composite parts
- Worm gear transmission for excellent reliability and safety
- Ideal for vessels 8.5 - 15 meters (28ft - 50ft)
- VX2 & VX3 series can be delivered in 24V on demand
-
