€ 1.597,64
1-2 weeks delivery time
-
+
The Lewmar 69120034 VX2+ GO model features a 12V gypsy-only deck unit constructed from stainless steel and composite parts, offering quiet and efficient chain handling. It has hybrid chain drive technology, IP68 motor protection, and a worm gear transmission. Suitable for boats 8.5 to 15 meters, it supports a 10mm DIN chain with a max pull of 1025 daN and a 1000W motor.
- Description
- Ask a Question
-

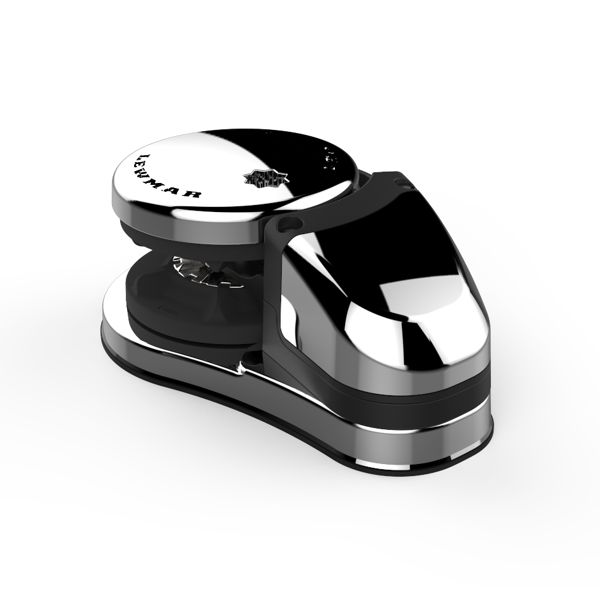

Lewmar 69120034 - Vertical Windlass VX2+ GO 10mm DIN Gypsy 12V - 1000W

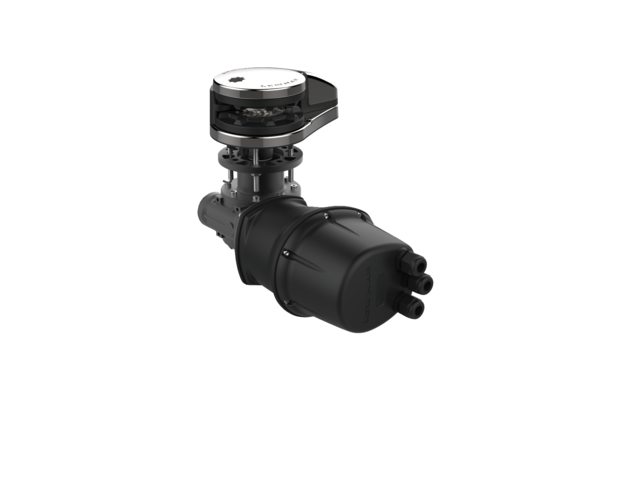

This VX2+ GO windlass model features a gypsy-only deck unit, constructed from stainless steel and composite materials. The set contains the deck unit, motor/gearbox, relais, chain drive, and chain counter sensor, excluding switch and fuse.
- Hybrid chain drive ensures quiet and efficient chain handling
- Standard IP68 and non-sparking motor protection
- Engine options include 500W, 700W, 1000W, and 1500W
- Composite parts reduce overall weight
- Worm gear transmission provides excellent reliability and safety
- Suitable for ships 8.5 - 15 meters (28ft - 50ft)
- VX2 & VX3 series deliverable in 24V on demand
- Article Number: 76412040
- Manufacturer Number: 69120034
- Type: VX2+ GO
- Voltage: 12V
- Max Motor Power: 1000W
- Max Pull: 1025 daN
- Max Line Speed: 39 m/min
- Working Load: 257 daN
- Weight: 16.1 kg
- Circuit Breaker: 110 A
- Chain Size DIN766: 10 mm
-
