€ 1.452,44
1-2 weeks delivery time
-
+
The Lewmar 69120032 VX2+ GO is a lightweight 12V vertical windlass with a gypsy-only deck unit made from stainless steel and composite materials. It includes a hybrid chain drive, IP68 motor protection, and worm gear transmission, suitable for boats 8.5 to 15 meters long. The model has a 1000W motor, supports 8mm chain, and offers a max pull force of 1025 daN.
- Description
- Ask a Question
-
Lewmar 69120032 - Vertical Windlass VX2+ GO 8mm Gypsy 12V - 1000W

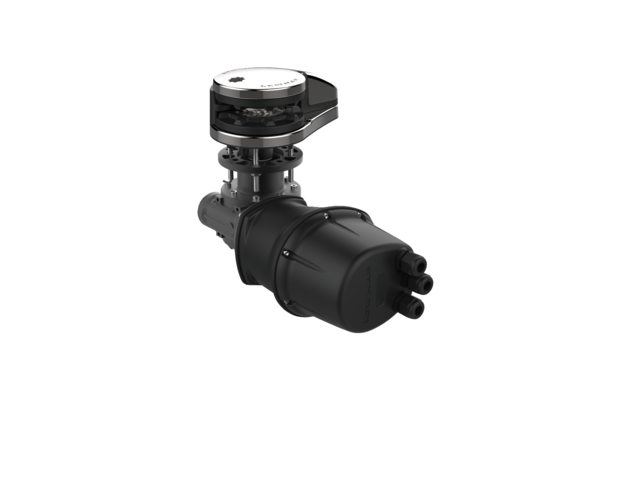

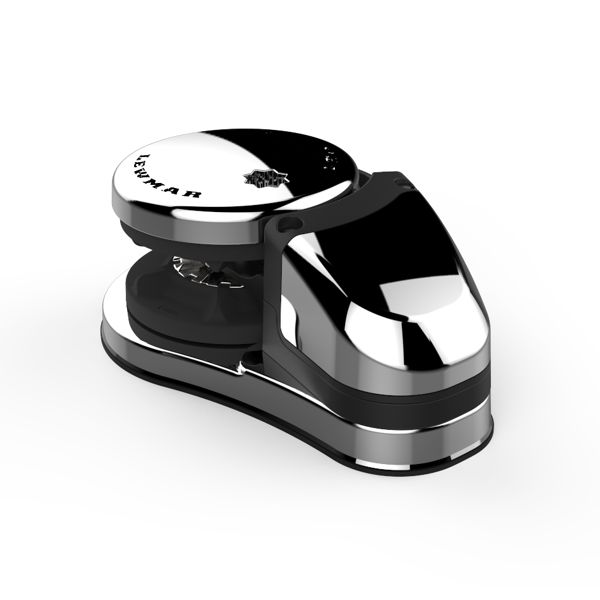

The VX2+ GO windlass features a lightweight design with a gypsy-only deck unit crafted from stainless steel and composite materials. The package includes the deck unit, motor/gearbox, relais, chain drive, and chain counter sensor, with switch and fuse excluded.
- Hybrid chain drive for quieter, improved chain throughput
- IP68 rated motor with non-sparking protection standard
- Available with 500W, 700W, 1000W, and 1500W engines
- Lightweight construction using composite parts
- Worm gear transmission offers reliability and safety
- Recommended for vessels 8.5 - 15 meters (28ft - 50ft)
- VX2 & VX3 series available in 24V upon request
- Article Number: 76412039
- Manufacturer Number: 69120032
- Type: VX2+ GO
- Voltage: 12V
- Max Motor Power: 1000W
- Max Pull: 1025 daN
- Max Line Speed: 39 m/min
- Working Load: 257 daN
- Weight: 16.1 kg
- Circuit Breaker: 110 A
- Chain Size DIN766: 8 mm
-
