€ 1.493,67
1-2 weeks delivery time
-
+
Lewmar 69120024 is a VX2 series gypsy-only (GO) vertical windlass constructed with stainless steel and composite components. The package includes deck unit, motor/gearbox, relay, chain drive, and chain counter sensor but excludes switch and fuse. It features hybrid chain drive, IP68 rating, non-sparking motor protection, 700W motor power, max pull force 850 daN, weighs 13.9 kg, and is suitable for vessels 8.5 to 15 meters.
- Description
- Ask a Question
-

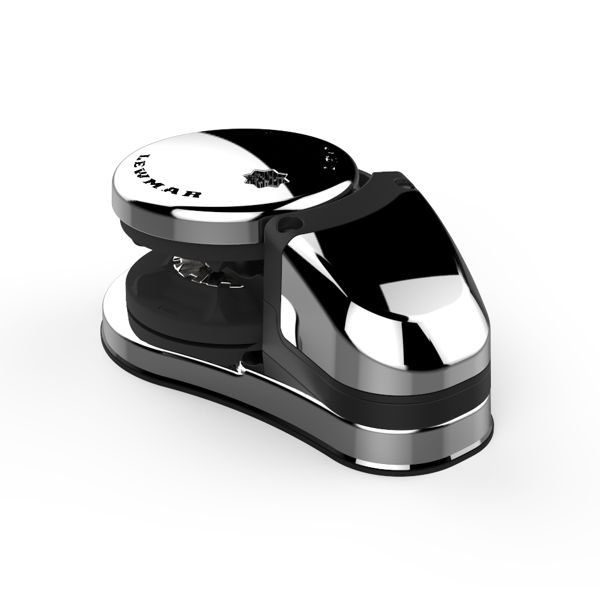

Lewmar 69120024 - Vertical Windlass VX2 GO 10mm DIN Gypsy 12V - 700W

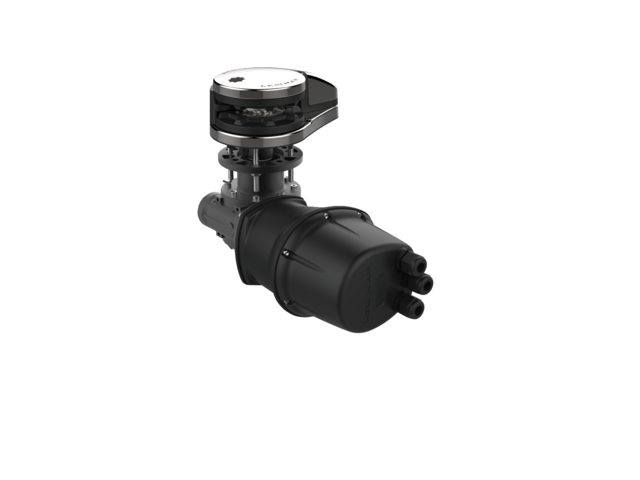

Part of the VX2 series, this windlass features a gypsy-only deck unit built with stainless steel and composite components. Included are the deck unit, motor/gearbox, relais, chain drive, and chain counter sensor; switch and fuse are not part of the set.
- Hybrid chain drive for quiet, efficient chain handling
- IP68 rating and non-sparking motor protection included
- Available with power options ranging from 500W to 1500W
- Lightweight construction through composite materials
- Worm gear transmission offers durability and safety
- Suitable for ships from 8.5 to 15 meters (28ft - 50ft)
- VX2 and VX3 series available in 24V on demand
- Article Number: 76412036
- Manufacturer Number: 69120024
- Type: VX2 GO
- Voltage: 12V
- Max Motor Power: 700W
- Max Pull: 850 daN
- Max Line Speed: 29 m/min
- Working Load: 213 daN
- Weight: 13.9 kg
- Circuit Breaker: 90 A
- Chain Size DIN766: 10 mm
-
