SKU:
LNK 76412035
€ 1.389,38
1-2 weeks delivery time
-
+
Lewmar 69120022 is part of the VX2 series, offering a lightweight gypsy-only (GO) vertical windlass made from stainless steel and composite materials. The set includes deck unit, motor/gearbox, relay, chain drive, and chain counter sensor, excluding switch and fuse. It features hybrid chain drive, IP68 and non-sparking motor protection, 700W motor power, max pull force 850 daN, weighs 13.9 kg, and is recommended for vessels 8.5 to 15 meters.
- Description
- Ask a Question
-

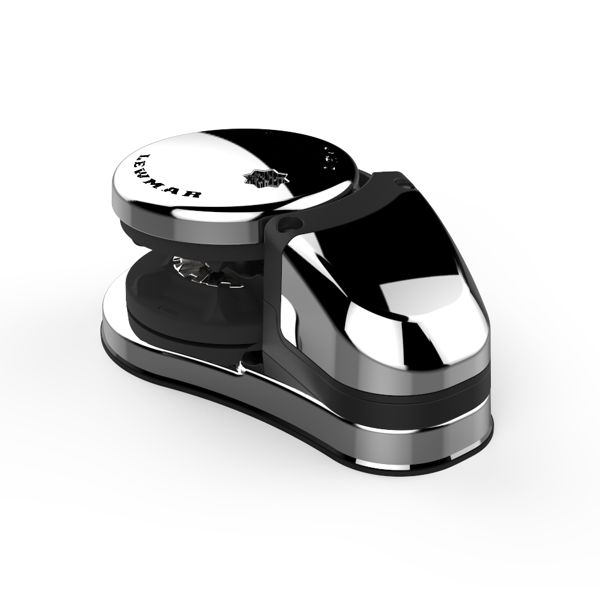

Lewmar 69120022 - Vertical Windlass VX2 GO 8mm Gypsy 12V - 700W

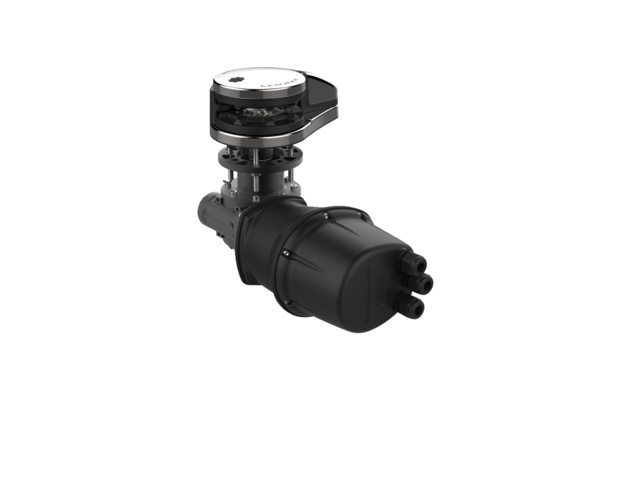

The VX2 series continues the lightweight legacy with a deck unit designed exclusively with a gypsy (GO). Crafted from stainless steel and composite parts, the set includes the deck unit, motor with gearbox, relais, chain drive, and chain counter sensor. Switch and fuse are excluded.
- Hybrid chain drive for quieter operation and enhanced chain flow
- Standard IP68 rating and non-sparking motor protection
- Available in power variants from 500W to 1500W
- Composite materials reduce overall weight
- Worm gear transmission delivers reliable and safe performance
- Recommended for vessels between 8.5 and 15 meters (28ft - 50ft)
- VX2 and VX3 series are available in 24V upon request
- Article Number: 76412035
- Manufacturer Number: 69120022
- Type: VX2 GO
- Voltage: 12V
- Max Motor Power: 700W
- Max Pull: 850 daN
- Max Line Speed: 29 m/min
- Working Load: 213 daN
- Weight: 13.9 kg
- Circuit Breaker: 90 A
- Chain Size DIN766: 8 mm
-
