SKU:
LNK 76412056
€ 1.531,74
1-2 weeks delivery time
-
+
The Lewmar 69100057 VX1L Vertical Windlass 800 GD features a vertical below-deck motor with chain drive and capstan, constructed from stainless steel AISI316 and composite materials. It includes manual freewheel, V700 model-compatible mounting, 500W or 800W motors, IP67 protection, and delivers a max pull force of 920 daN with a max line speed of 21 m/min.
- Description
- Ask a Question
-
Lewmar 69100057 - VX1L Vertical Windlass With Drum 800 GD 8mm STD Kit

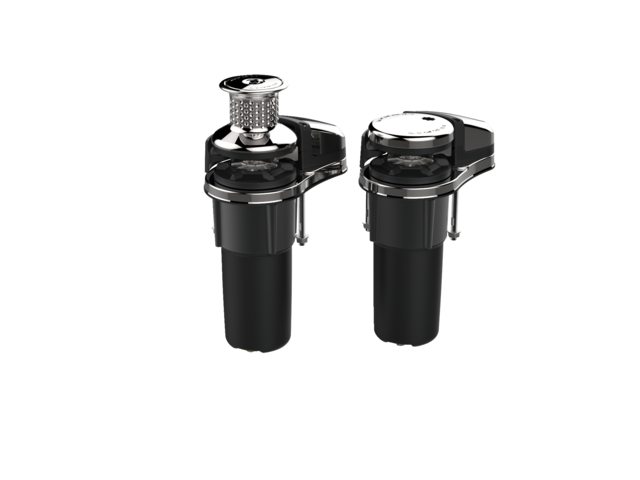

The VX1L series windlass features a vertical below-deck engine, designed for compact and efficient mounting. The deck unit offers a combination of chain drive and capstan (GD), made from stainless steel AISI316 and composite materials. The set is easy to assemble and includes the deck unit, motor/gearbox, relais, chain drive, and chain counter sensor (switch and fuse not included).
- Manual freewheel for easy operation
- Compatible mounting dimensions with the V700 model
- Available with 500W or 800W engines
- Motor protection rated at IP67 standard
- Includes deck unit, motor/gearbox, relais, chain drive, and chain counter sensor
- Power supply: 12V
- Max motor power: 800W
- Maximum pull force: 920 daN
- Maximum line speed: 21 m/min
- Working load: 230 daN
- Weight: 8.5 kg
- Circuit breaker rating: 70 A
- Chain size: 8 mm DIN766
-
