SKU:
LNK 76412054
€ 1.604,39
1-2 weeks delivery time
-
+
The Lewmar 69100055 VX1L Vertical Windlass 800 GD is designed with a compact in-line motor and epicyclical gearbox, providing strong performance and efficient space use below deck. It supports two gypsy sizes, has a motor housing rated to IP67, includes a manual clutch release and drum, and features 500W or 800W motors with a maximum pull of 920 kg.
- Description
- Ask a Question
-

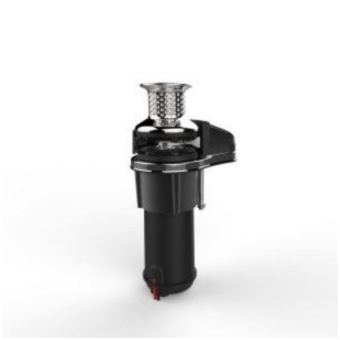

Lewmar 69100055 - VX1L Vertical Windlass With Drum 800 GD 6/7mm STD Kit
This VX1L windlass model features a compact design with an in-line motor and epicyclical gearbox, delivering strong performance and efficient space use below deck. It includes a drum option and offers two gypsy sizes.
- Maximum pull: 920 kg
- Gypsy options: 6/7mm 1/4’’ and 8mm 5/16
- Motor housing rated to P67 standard
- Manual clutch release
- Drum included
- Made from stainless steel and composite materials
- Same footprint as V700 model
- 500W and 800W 12V motors available
- Kit includes deck unit with motor gearbox and solenoid
- Motor Power (W): 800W
- Max Pull (KG): 920
- Working Load (KG): 230
- Max Line Speed (M/MIN): 21
- Normal Current Draw: 105
- Circuit Breaker: 90
- Approx Weight GD: 8.5kg
-
