SKU:
LNK 76412053
€ 1.504,14
1-2 weeks delivery time
-
+
The Lewmar 69100054 VX1L Vertical Windlass 500 GD combines a vertical below-deck motor with chain drive and capstan, featuring stainless steel AISI316 and composite construction for durability. It offers manual freewheel, mounting compatibility with the V700 model, 500W or 800W motor options, IP67 motor protection, and includes key components like the deck unit, motor/gearbox, relais, chain drive, and chain counter sensor.
- Description
- Ask a Question
-

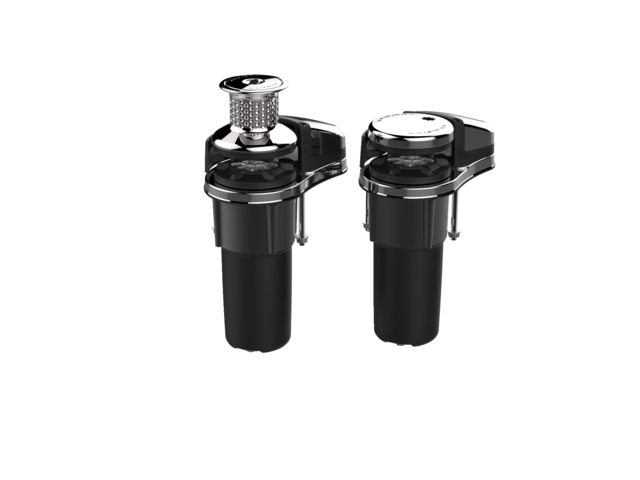

Lewmar 69100054 - VX1L Vertical Windlass With Drum 500 GD 6/7mm STD KIT
The VX1L 500 GD offers a vertical below-deck motor with chain drive and capstan (GD), combining compactness and ease of installation. Constructed from stainless steel AISI316 and composite materials, it is built for reliability.
- Manual freewheel
- Mounting dimensions matching the V700 model
- Available with 500W or 800W motors
- IP67 motor protection rating
- Includes deck unit, motor/gearbox, relais, chain drive, and chain counter sensor (switch and fuse not included)
- Article Number: 76412053
- Manufacturer Number: 69100054
- Lewmar type: VX1L 500 GD
- Power option V: 12
- Max motor power W: 500
- Max pull daN: 650
- Max line speed m/min: 20
- Working load daN: 160
- Weight kg: 8.5

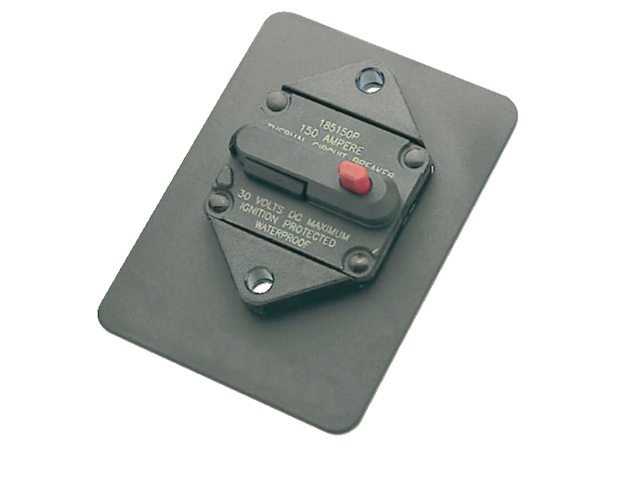

- Circuit breaker A: 50
- Chain DIN766 mm: 6/7
-
