SKU:
LNK 76412052
€ 1.402,14
1-2 weeks delivery time
-
+
The Lewmar 69100053 VX1L 800 GO is a vertical windlass with a below-deck 12V motor, designed for efficient installation on boats requiring 8mm chain. It has a manual freewheel, IP67 motor protection, and includes deck unit, motor/gearbox, relais, chain drive, and sensor. The 800W motor provides a max pull of 920 daN and max line speed of 21 m/min.
- Description
- Ask a Question
-

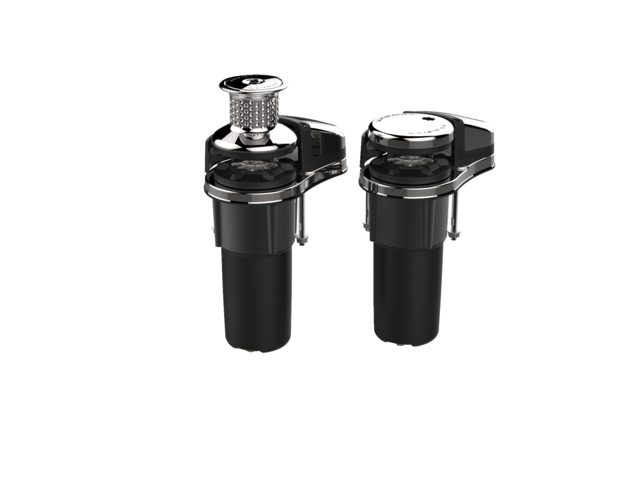

Lewmar 69100053 - VX1L Vertical Windlass 800 GO 8mm STD KIT
This VX1L windlass model features a vertical below-deck motor arrangement, designed for compact and efficient installation. It includes a single chain drive (GO), made with stainless steel AISI316 and composite parts for durability.
- Manual freewheel mechanism

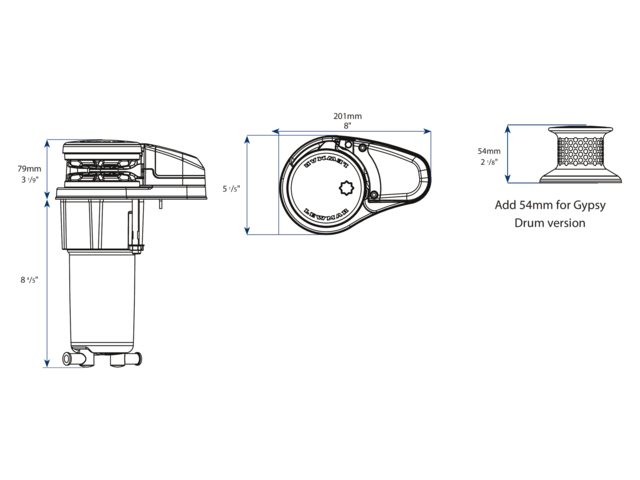

- Mounting dimensions identical to V700 model
- Available with 500W or 800W motors
- Motor protection rating IP67
- Set includes deck unit, motor/gearbox, relais, chain drive, and chain counter sensor (excludes switch and fuse)
- Article Number: 76412052
- Manufacturer Number: 69100053
- Lewmar type: VX1L 800 GO
- Power option V: 12
- Max motor power W: 800
- Max pull daN: 920
- Max line speed m/min: 21
- Working load daN: 230
- Weight kg: 8.0

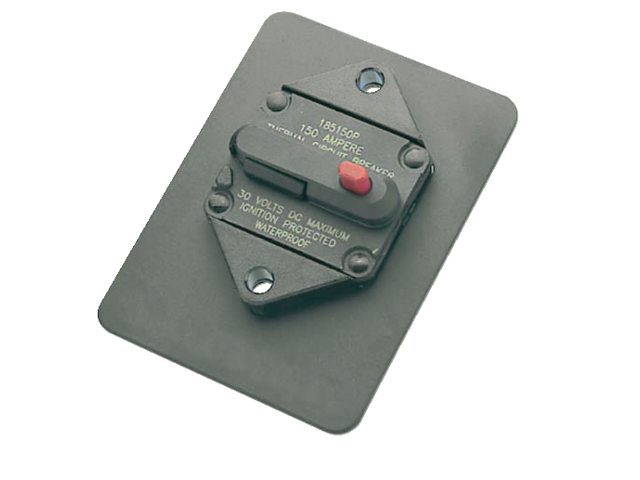

- Circuit breaker A: 70
- Chain DIN766 mm: 8
-
