SKU:
LNK 76412051
€ 1.367,12
1-2 weeks delivery time
-
+
The Lewmar 69100052 VX1L 500 GO is a compact 12V vertical windlass with in-line motor and epicyclical gearbox, suitable for boats up to 36ft. It includes two gypsy sizes (6/7mm and 8mm), motor protection to IP67, and a manual clutch release. The 500W motor offers a max pull of 650 kg and max speed of 20 m/min.
- Description
- Ask a Question
-

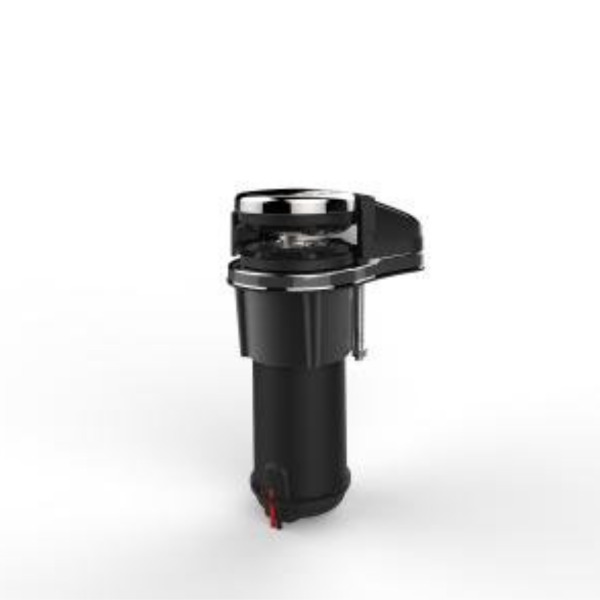

Lewmar 69100052 - VX1L Vertical Windlass 500 GO 8mm STD KIT
The VX1L vertical windlass combines a compact, easy-to-install one-piece design with powerful performance for boats up to 36ft. Featuring an in-line motor and epicyclical gearbox, it offers a robust solution without taking up much space below decks.
- Maximum pull: 920 kg
- Two gypsy options: 6/7mm 1/4’’ and 8mm 5/16
- Motor housing rated to P67 standard
- Manual clutch release
- Drum option available
- Constructed from stainless steel and composite materials
- Footprint matches V700 model
- Available with 500W or 800W 12V motors
- Kit includes deck unit with motor gearbox and solenoid
- Motor Power (W): 500W
- Max Pull (KG): 650
- Working Load (KG): 160
- Max Line Speed (M/MIN): 20
- Normal Current Draw: 75
- Circuit Breaker: 70
- Approx Weight GO: 8kg
-
