SKU:
LNK 76412049
€ 1.324,80
1-2 weeks delivery time
-
+
The Lewmar 69100050 VX1L 500 GO is a compact 12V vertical windlass with a below-deck motor, designed for smaller boats using 6/7mm chain. It features stainless steel AISI316 and composite materials, manual freewheel, and IP67 motor protection. The 500W motor provides a max pull of 650 daN and max line speed of 20 m/min.
- Description
- Ask a Question
-

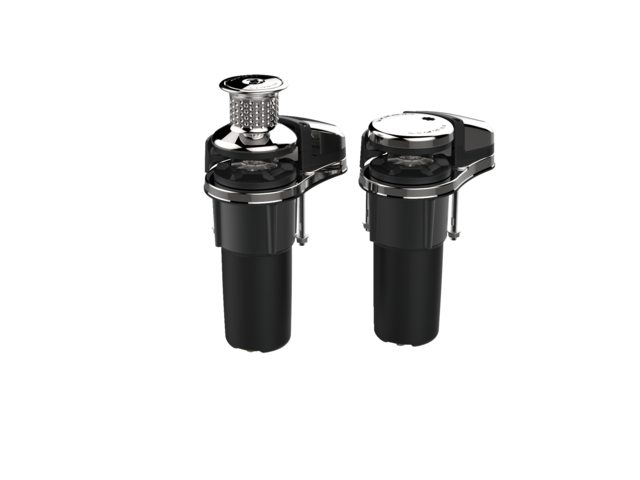

Lewmar 69100050 - VX1L Vertical Windlass 500 GO 6/7mm STD KIT
The VX1L series features a vertical below-deck engine design that enables a compact and efficient winch with simple assembly. The deck unit is configured with a single chain drive (GO) and is built from stainless steel AISI316 and composite materials. Ideal for smaller boats requiring a 6/7mm chain.
- Article Number: 76412049
- Manufacturer number: 69100050
- Lewmar type: VX1L 500 GO
- Power supply: 12V
- Maximum motor power: 500W
- Maximum pull force: 650 daN
- Maximum line speed: 20 m/min
- Working load: 160 daN
- Weight: 8.0 kg
- Circuit breaker rating: 50A
- Chain size (DIN766): 6/7 mm
- Features:
- Manual freewheel included
- Compatible with mounting dimensions of V700
- Available with 500W and 800W engines
- IP67 standard motor protection
- Includes deck unit, motor/gearbox, relais, chain drive, and chain counter sensor
-
