Lewmar 69100025 is a VX1 series windlass featuring a gypsy and capstan (GD) deck unit made from stainless steel and composite parts. The set includes deck unit, motor/gearbox, relay, chain drive, and chain counter sensor but excludes switch and fuse. It has a hybrid chain drive for quieter operation, IP68 and non-sparking motor protection, 500W motor power, max pull force 675 daN, and weighs 13.5 kg, suitable for vessels 8.5 to 15 meters.
- Description
- Ask a Question
-

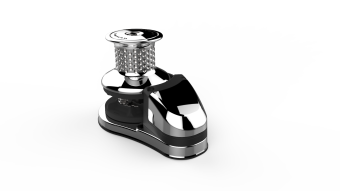

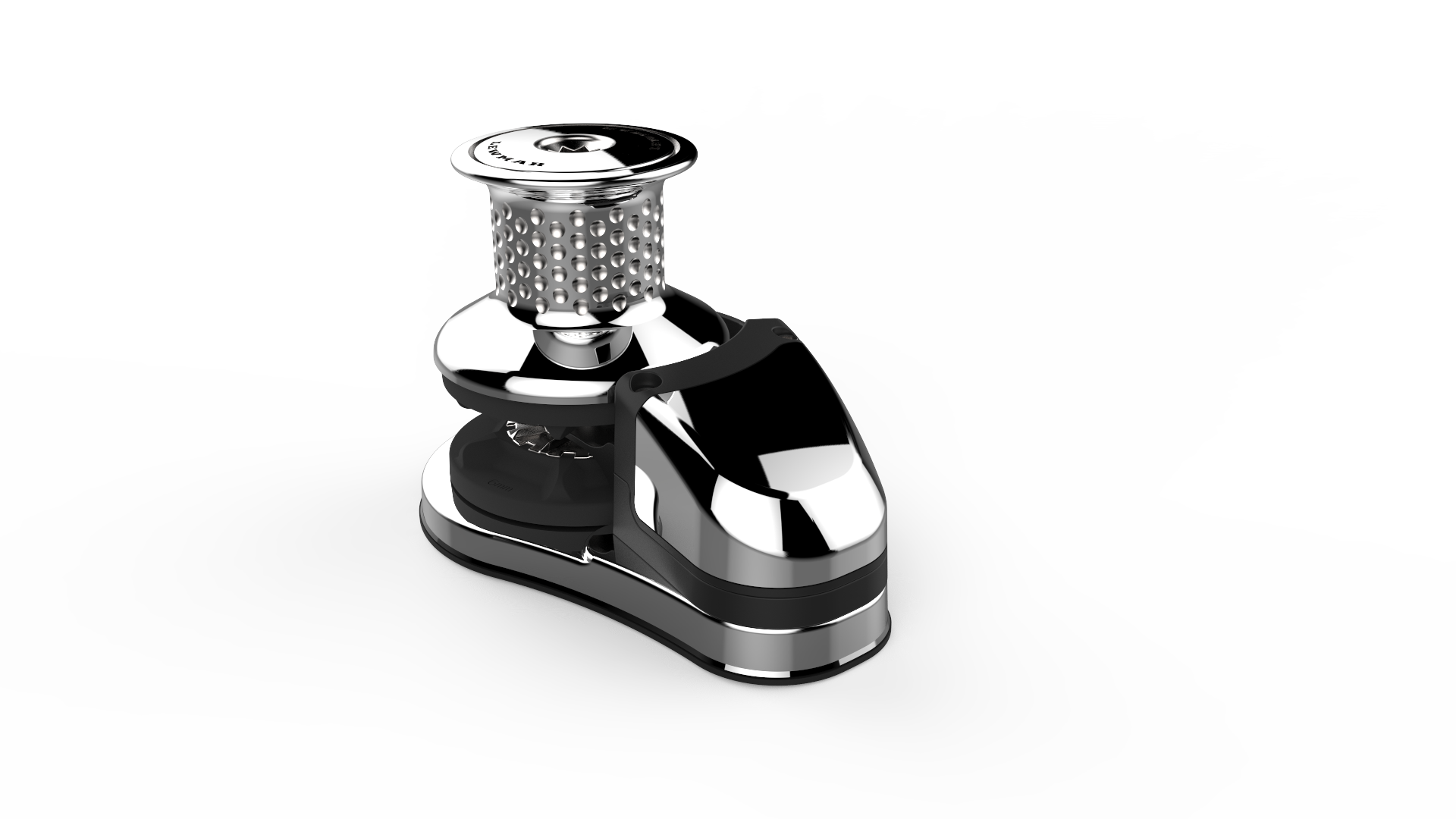

Lewmar 69100025 - Vertical Windlass VX1 GD 6/7mm 12V - 500W

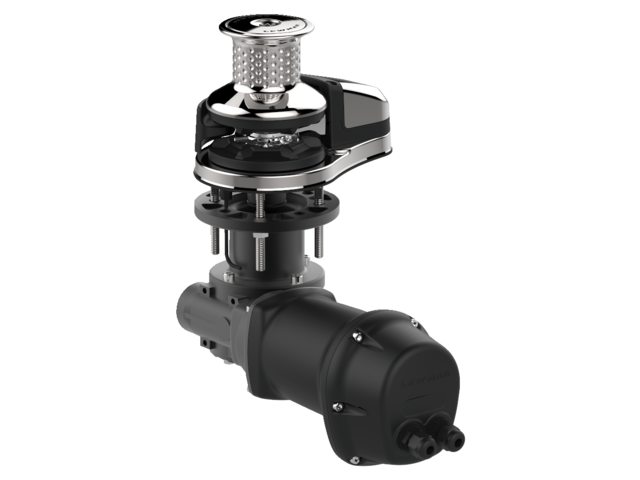

The VX1 series windlass incorporates the newest lightweight technology for simple assembly. This model includes a deck unit featuring a combined gypsy and capstan (GD) made of stainless steel and composite materials. The set contains the deck unit, motor with gearbox, relais, chain drive, and chain counter sensor, excluding the switch and fuse.
- Hybrid chain drive for quieter operation and improved chain throughput
- Equipped with IP68 and non-sparking motor protection as standard
- Available with power options of 500W, 700W, 1000W, and 1500W
- Reduced weight thanks to composite components
- Worm gear transmission ensures excellent reliability and safety
- Suitable for vessels from 8.5 to 15 meters (28ft - 50ft)
- Article Number: 76412033
- Manufacturer Number: 69100025
- Type: VX1 GD
- Voltage: 12V
- Max Motor Power: 500W
- Max Pull: 675 daN
- Max Line Speed: 25 m/min
- Working Load: 169 daN
- Weight: 13.5 kg
- Circuit Breaker: 70 A
- Chain Size DIN766: 6/7 mm
-
